    SMSL SA-98E 2x160W Class D Amplifier

    € 96,65€ 116,95 >10 In stock: delivery time 1-4 business days
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The SMSL SA-98E is engineered around the STMicroelectronics TDA7498E amp chip and is built with quality electronic components from Panasonic, ALPS, WIMA, and Siemens. This amplifier, though small in size, will produce a whopping 160 watts per channel.

    Highlights

    • Ultra-efficient operation for huge wattage output
    • Built with quality electronic components from around the world
    • Simple operation with a single analog input and smoothly response volume control
    • Includes a 36 VDC, 4000 mA power supply for peak performance



    Product details

    SMSL SA-98E 2x160W Class D Amplifier

    If you need a ton of power in a small space, consider the SMSL SA-98E to drive you speakers. This amp produces 160 watts per channel into a 4 ohm load allowing you to drive demanding speakers without necessitating the space of a large receiver and a super short-circuit and over-temperature output overload protection ensures a long lifespan.

    Quality craftsmanship is apparent when looking at the components list. Centered around the 85% efficient STMicroelectronics TDA7498E amp chip, the amp is also made up with parts from ALPS, Panasonic, and Siemens.

    ERO film capacitors have good performances in full-frequency clarity, sound field depth layering, sound texture, intermediate frequency information and the details.

    Panasonic capacitors have characteristics of low leakage current, low internal resistance, high ripple current, excellent properties, warm sound, intermediate frequency thick and natural, high frequency soft and delicate.

    ALPS potentiometers are low coloration, low noise, high balance and durable.

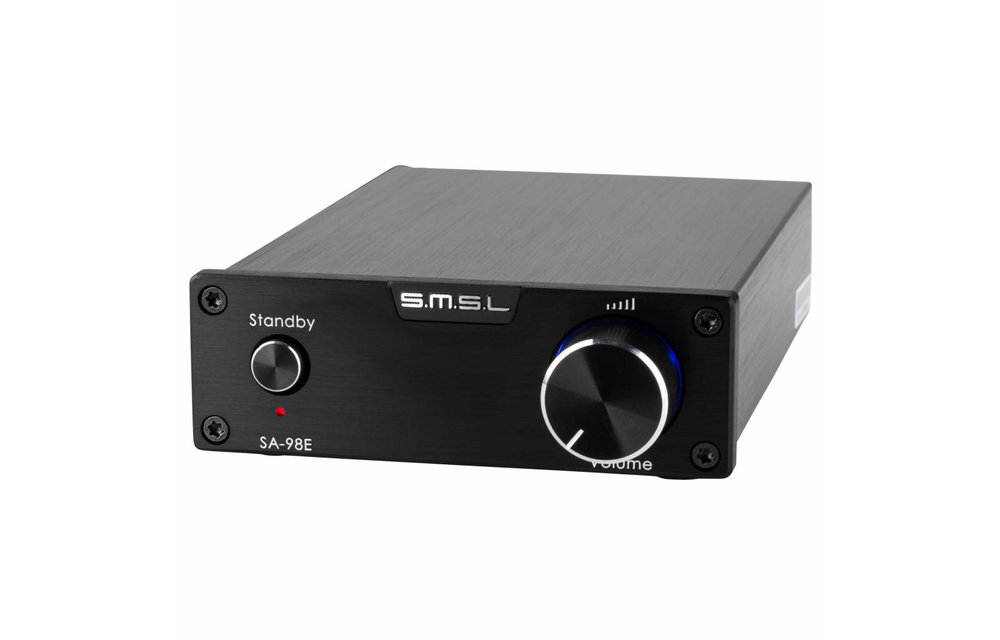

    Operation is kept extremely simple with a single volume knob of the front panel and a single set of stereo RCA jacks for source input. Use this amp with any CD player, portable audio device, or desktop DAC to get powerful, full range sound.



    Technical Specifications

    Amplifier chip

    TDA7498E

    Power output

    2 x 160W max @ 4 ohm (10% THD)

    Total Harmonic Distortion @ 1W

    0.02%

    Minimum load

    4 ohm

    Power supply voltage

    36V 4A

    Efficiency

    85%

    Frequency response

    20-20,000Hz

    Dimensions

    168 x 98 x 36mm (including protruding parts)









    Specifications

    Article number
    SA-98E
    Rated power output (RMS)
    2 x 160 Watts (max) at 4 ohms
    Bridged power output (RMS)
    -
    Minimum load
    4
    Signal-to-noise ratio (SNR)
    -
    Distortion
    0.02%
    Distortion bridged
    -
    Efficiency
    85%
    Frequency response
    20-20,000Hz
    Ingangsimpedantie
    -
    Input sensitivity
    400mV to 2V
    Auto turn-on sensitivity
    -
    DSP
    -
    DAC
    -
    Maximum sampling rate
    -
    Circuit Topology
    TDA7948E
    Amplifier classification
    D
    Speaker output channels
    2
    Subwoofer output channel
    -
    Analog in/out
    -/-
    Optical S/PDIF in/out
    -/-
    Coaxial in/out
    -
    RCA in/out
    1/-
    AUX in/out
    -/-
    Bus in/out
    -/-
    XLR in/out
    -/-
    USB
    -
    Memory card slot
    -
    Network connection
    -
    Headphone jack
    -
    Subwoofer pre-out
    -
    Bluetooth
    -
    NFC
    -
    Wi-Fi
    -
    Banana plug compatible
    check
    Remote control
    -
    App control
    -
    Auto turn-on
    -
    Accepted file formats
    -
    Equalizer (EQ) adjustment
    -
    Equalizer (EQ) profiles
    -
    Multi zone/room
    -
    Crossover frequency adjustment
    -
    Bridge mode
    -
    Power requirements
    32-36 VDC
    Power inlet connector
    -
    Power consumption
    -
    Stand-by power consumption
    -
    Dimensions (D x W x H)
    168 x 98 x 36 mm (including protruding parts)
    Case material
    Aluminum
