    miniDSP USBStreamer Kit Multi-Channel 10x10 USB audio to Toslink/I2S/ADAT interface

    € 149,95 Out of stock: delivery time is 1 week
    USBStreamer is a native 24/192kHz multi-channel (10x10) USB audio to Toslink/I2S/ADAT interface.... Show more
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    USBStreamer is a native 24/192kHz multi-channel (10x10) USB audio to Toslink/I2S/ADAT interface.



    Highlights

    • Up to 10 x IN, 10 x OUT multi-channel USB audio interface
    • Wide range of digital IO format depending on the loaded firmware: I2S (8x8) + TOSLINK(2x2), ADAT (8x8) or TDM (8x8 at 48/44.1k only)
    • Native support up to 24bit / 192kHz
    • USB 2.0 High speed and Audio class 2.0 device
    • Asynchronous USB synchronization
    • Thesycon ASIO Win driver provided with support for Win10 (signed drivers)
    • Driverless support under Mac OSx. Sound card aggregate mode allows combining of multiple units
    • Linux compatible with ALSA 2.0 drivers
    • Toslink (optical) transmitter and receiver
    • Flexible board powering option: USB powered or External DC input power



    Product details

    USBStreamer Kit Multi-Channel 10x10 USB audio to Toslink/I2S/ADAT interface

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

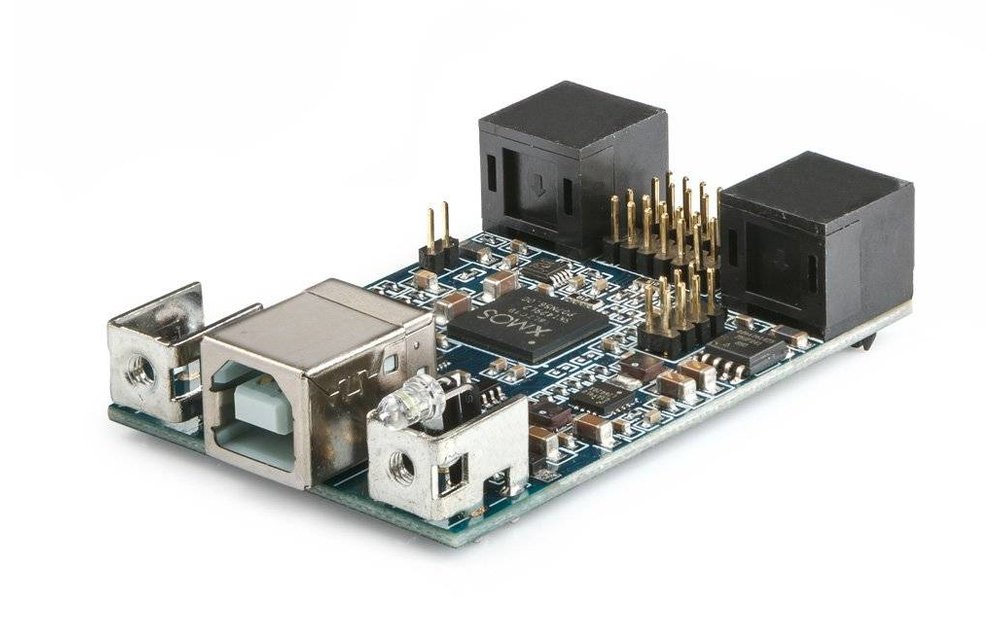

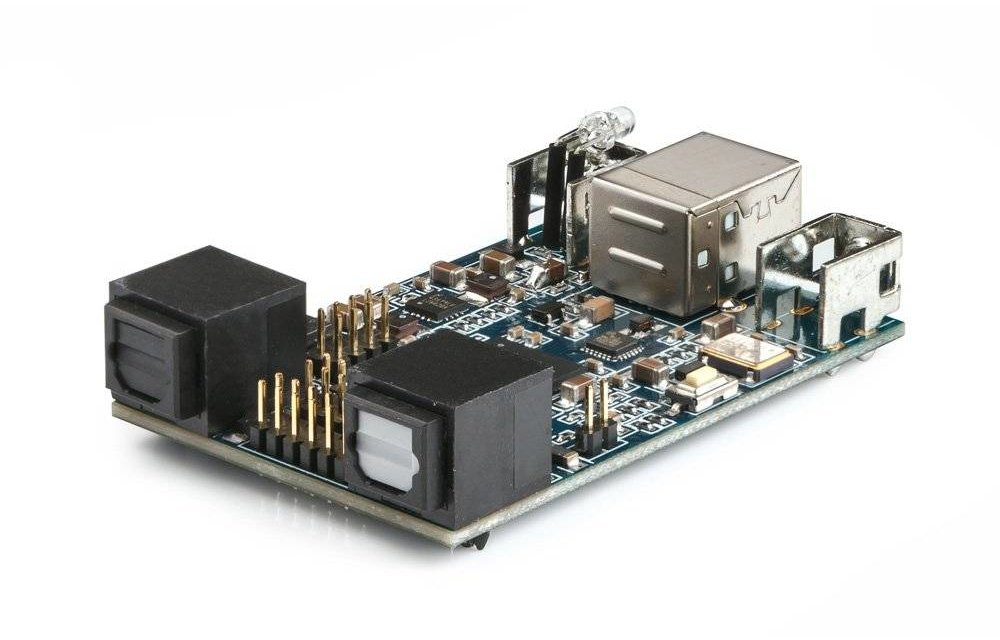

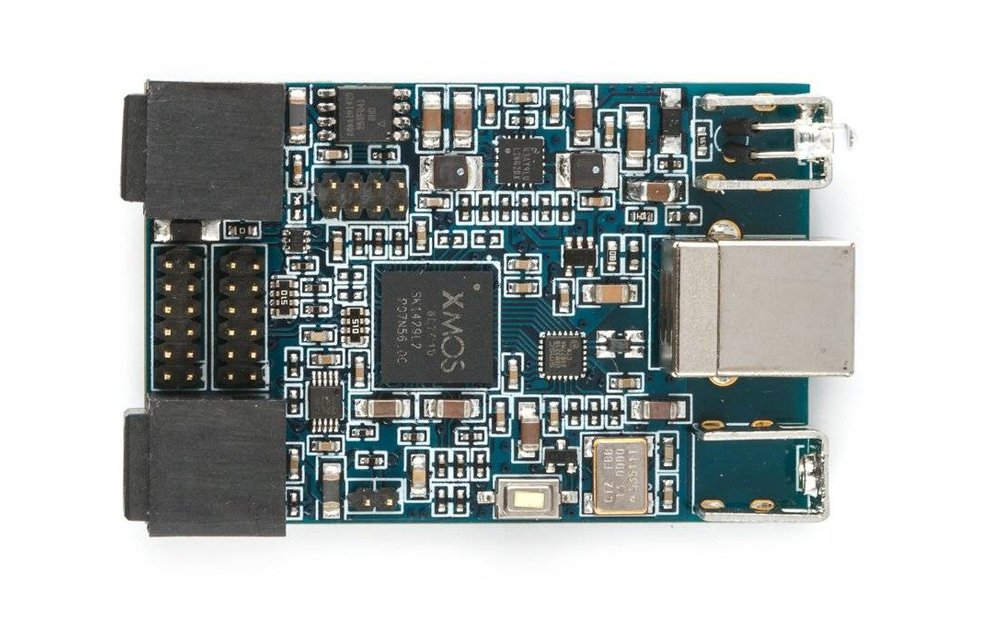

    The USBStreamer is a miniature 24/192 multi-channel USB to Toslink/ADAT/I2S/ TDM interface. Packaged on a tiny PCB of only 2.4" by 1.4" (40x62mm), this interface is the perfect fit for OEM integration or as an element of a customized high performance A/V product for up to 10 channels of bidirectional audio streaming.



    The USBStreamer utilizes high speed USB2.0 along with the Audio Class 2.0 implementation to simultaneously provide up to 10channels of playback along with 10channel of recording. Out of the 10channels, 2ch are provided on the Toslink interface with the remaining provided on the I2S expansion connector. The dongle is up & running in a matter of seconds with compatible drivers for both Mac/Windows platforms. An easy and flexible system integration that follows the footsteps of the miniDSP product line. From a high end stereo USB interface to a multi-channel USB interface, the USBStreamer is an innovative yet cost effective USB 2.0 audio interface for a wide range of custom A/V products.



    What's in the box?

    • 1 x USBStreamer board
    • 1 x 1m long USB audio cable
    • 2 x Toslink audio cables
    • 2 x 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing
    • 1 x Coupon code for miniDSP plugin download



    Mechanical Specifications





    PRODUCT SPECIFICATIONS

    Item

    Description

    USB Streaming engine

    XMOS L2 core / USB 2.0 full speed - USB Audio class 2.0 compliant

    Capabilities







    I2S + Toslink firmware: 8ch via I2S + 2ch Toslink (bidirectional) Stereo firmware: 2ch I2S + 2ch Toslink (bidirectional) ADAT: 8ch @ 48k bidirectional on optical receiver/transmitter TDM: 8ch audio bidirectionnal

    Drivers











    Driverless interface for Mac OS X v10.6.4 and up

    Thesycon Windows ASIO driver provided (XP/Vista/7/8/Win10)

    Linux Alsa compliant driver

    Apple IoS (ipad/iphone) using Camera kit - multichannel audio streaming

    I2S/TDM format for input/outputs









    24 bits I2S master mode

    Sample rate: 8/11.025/12/16/22.05/24k/32k/64k 44.1/48/88.2/96/176.4/ 192kHz

    TDM mode: 8ch @ 48k / input and output on I2S_data_in1/out1.

    Optical input





    Toslink sample rate: 44.1/48/88.2/96/176.4 kHz

    ADAT sample rate: 8ch ADAT mode @ 48/44.1k

    Optical output





    Toslink sample rate: 44.1/48/88.2/96/176.4 kHz

    ADAT sample rate: 8ch ADAT mode @ 48/44.1k

    Expansion connector

    2 x 12pin, 2mm pitch expansion connector for connectivity to hardware.

    Mounting

    2 x Right Angle brackets allow easy chassis mounting with M3 threaded hole

    Power supply

    USB powered OR 5Vdc external supply via header - 300mA requirement

    Dimensions (H x W x D) mm

    13 x 40 x 62 mm



    Specifications

    Article number
    USBStreamer Kit

    Reviews

    5 from 5Based on 4 reviews
    Review this product
    5 van 5
    Macht was es soll - und ist schön klein - schade daß es dafür kein Gehäuse gibt.
    Könnte man für ein paar Euro extra anbieten !! So mußte ich es mit einem 3D Drucker selbst anfertigen.
    By Wolfgang K. on 22 October 2020
    5 van 5
    Super! Ik gebruik dit onder Linux en werkt *perfect* out of the box, zeer aangename verrassing. (Debian)
    Verder zeer secuur verpakt en snel geleverd.
    By Rik D. on 7 May 2020
