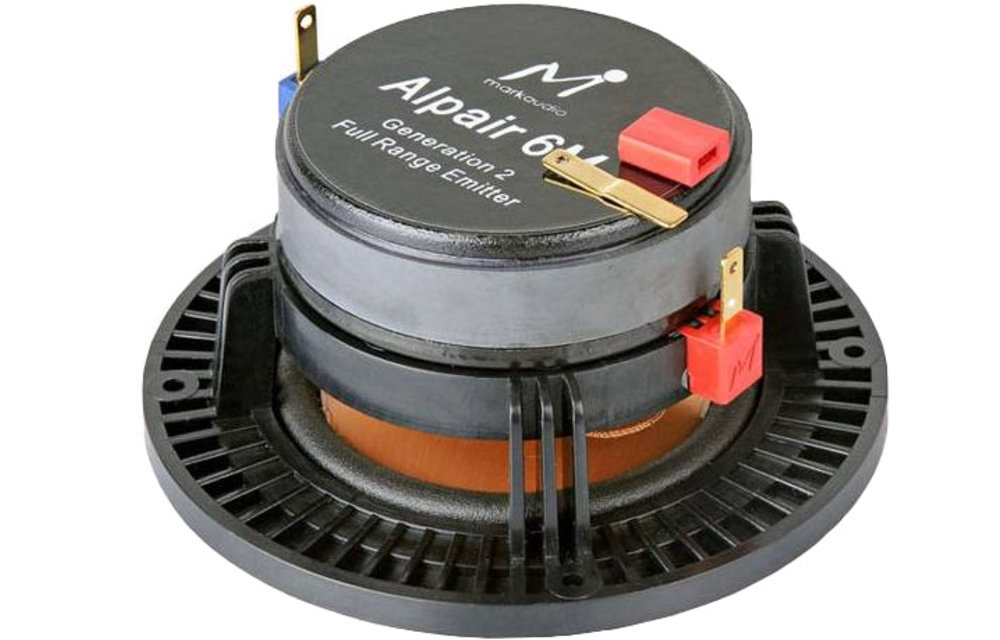

      Markaudio Alpair-6 Gold 3.5" Full Range Woofer

      € 41,28€ 49,95 4 In stock: In stock
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 47,45 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Alpair-6 is well suited to smaller audio applications, particularly desk-top and nearfield uses. The bass-rich warm tone of this driver can act a balance for those installations using compressed or highly processed source music, complements the use of traditional and modern solid-state amplification. This new generation 2 model concentrates on refining the musicality of the Alpair-6 heritage.



      Highlights

      • Latest-model
      • New Multi-form cone design allows improvement of vocal clarity in the lower/lower mid-frequency ranges
      • New advanced Nomex rear suspension
      • New ultra-lightweight copper wound coil
      • New connector sets allow for remote soldering of cables making installation easy
      • Built-in overload protection (arrestor in motor sub-assembly)



      Product details

      Markaudio Alpair-6 Gold 3.5" Full Range Woofer



      The Alpair 6 has a mechanical X Max (1 way) of 5.5 mm (in flux). This feature is only designed to handle non-linear “peak-shock” loads, for example, the brief roll of a drum beat. For optimum movement, loads NOT exceeding 3.00 mm is within its capability for a period not exceeding 1.5 hours. The normal driven movement should remain inside 2.6 mm. For a driver of this size, this normal load X-max is generous; Together with a well-matched cabinet, a pleasing bass response can be generated.



      This new generation 2 driver has a new Multi-form cone design. The cone profile has been modified to improve vocal clarity in the lower/lower mid-frequency ranges. New advanced Nomex rear suspension and a new low mass copper wound coil are also included in this design. Other additional features include a revision of the polymer mix for the frame making it 10% stiffer than the old model. Lastly, the new connector sets allow for remote soldering of cables, making installation easy.

      Specifications

      Article number
      Alpair-6 Gold
      Woofer Series
      Alpair Series
      Woofer Type
      Full-range
      Nominal Diameter
      3.5"
      Power Handling (RMS)
      15 Watts
      Power Handling (max)
      30 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      85.4 dB 2.83V/1m
      Voice Coil Diameter
      0.7"
      DC Resistance (Re)
      3.6 ohms
      Resonant Frequency (Fs)
      63 Hz
      Mechanical Q (Qms)
      2.76
      Electromagnetic Q (Qes)
      0.45
      Total Q (Qts)
      0.38
      Mechanical Compliance of Suspension (Cms)
      2.58 mm/N
      BL Product (BL)
      2.81 Tm
      Compliance Equivalent Volume (Vas)
      0.16 ft.³
      Overall Outside Diameter
      4.48"
      Overall Depth
      2.07"
      Baffle Cutout Diameter
      3.77"
      # Mounting Holes
      4

      Show more

      Reviews

      5 from 5Based on 2 reviews
      Review this product
      5 of 5
      Works well in a back loaded horn enclosure. Surprising bass; crisp, clear treble. Excellent value.
      By Joseph on 18 June 2022
      5 of 5
      Erstaunlich, was dieser kleine Breitbänder in einer 3,5 Liter Bassreflex-Box (PC-Desktop) an Räumlichkeit und ermüdungsfreiem Klang zustande bringt. Stimmen klingen angenehm und etwas hervorgehoben. Zischlaute sind zurückhaltend. Das alles ohne Filter im Signalweg. Viel besser als mein erster Versuch mit Visaton FR10 bei dessen Entzerrung mit Sperrkreis ich aufgegeben habe.
      By Lubos Trnobransky on 27 May 2022
