Build the ultimate subwoofer using this extremely rigid, 85 liter subwoofer flatpack. Extremely well thought out, this cabinet includes precision-machined panels that include dadoes, a double-thick front baffle, and a unique two-piece brace system.
- 85 liter cabinet made of 1.91cm MDF panels with a 3.81cm thick front baffle
- CNC-machined dadoes, subwoofer cutout and recess, and a unique bracing system that increases cabinet rigidity
- Designed specifically for the Dayton Audio RSS390-4 Reference Series High Output subwoofer

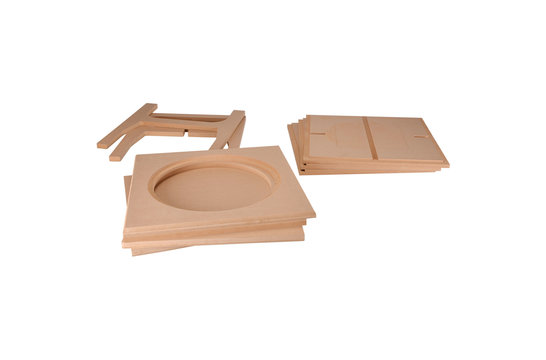

Denovo 15 Inch | 38.1cm Reference DIY Cabinet Flatpack
This CNC machined cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to tools or a woodshop.
This particular cabinet is designed specifically for the Dayton Audio 38.1cm Reference Series High Output subwoofer, but works for any subwoofer with an overall diameter of 15 Inch | 39 cm or less, and a cutout requirement of 35.7 cm or less. The sealed enclosure design creates a critically damped subwoofer system when used with the Dayton Audio RSS390HO-4.
During the CNC manufacturing process, rabbets dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 1.91cm rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw and by modifying one of the braces.
The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 38.1cm High Output Reference Series subwoofer. All that's left to do is finish it to match your décor or paint it to stand out. When your friends ask about it, you get the pleasure of saying, "I built it myself!"
*This cabinet still needs to be assembled.*
