        RS100T-8 4" Reference Woofer Truncated Frame

        RS100T-8 4" Reference Woofer Truncated Frame

        €48,95

        Add to cart

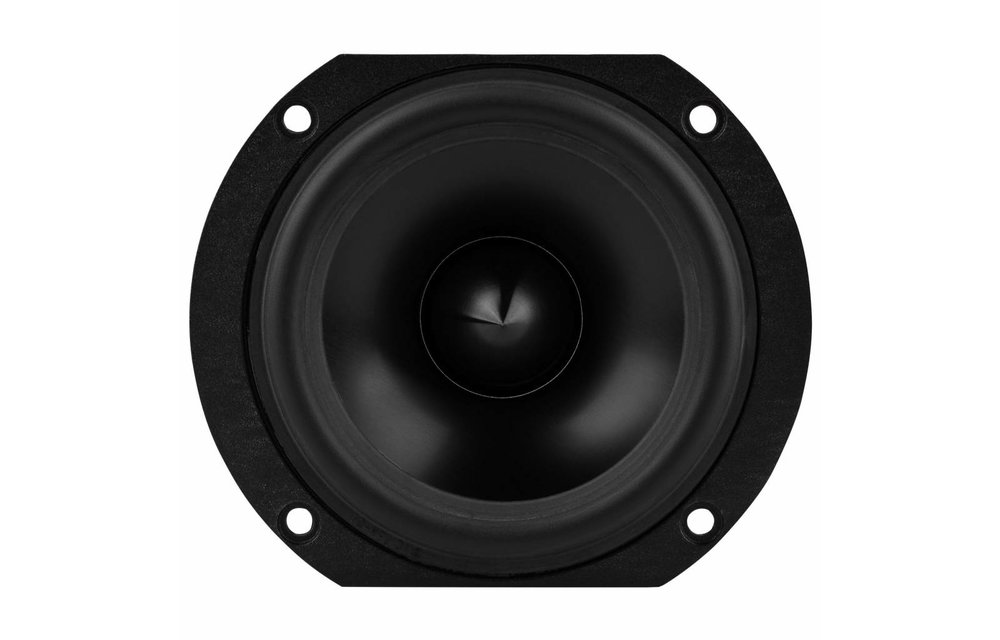

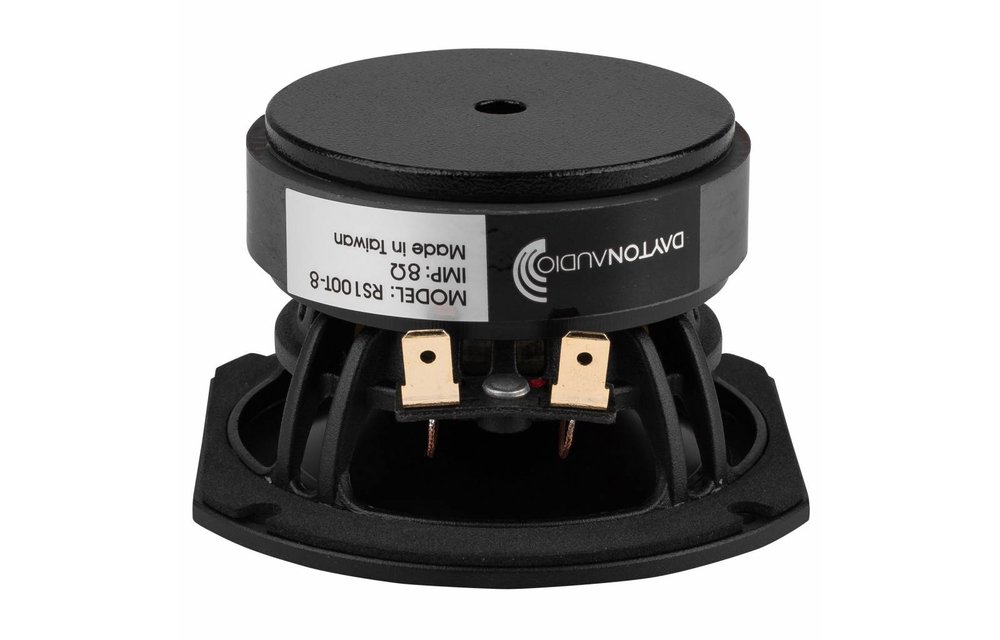

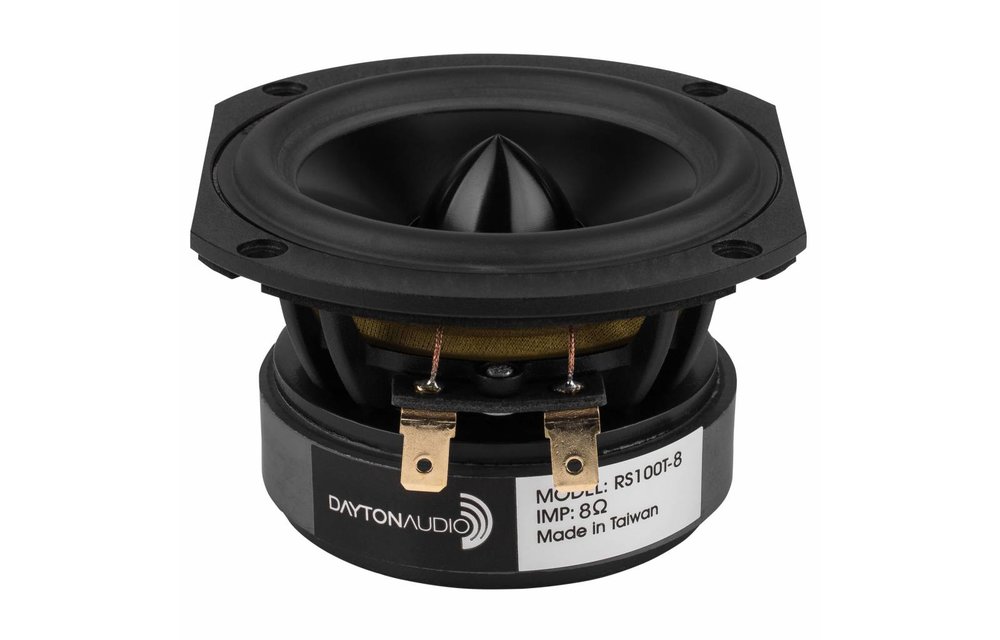

        Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Dayton Audio
        Show all Full-range woofer
        4" | 8 Ω
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        € 40,45€ 48,95 1 In stock
        • -5% Purchase 4 for only € 46,50 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • Five-year warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame
        RS100T-8 4" Reference Woofer Truncated Frame

        Product description

        Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.



        Highlights

        • Truncated cast frame, great for line arrays and MTM speaker designs
        • Long-excursion motor and suspension for strong bass performance
        • Advanced low-distortion motor design
        • Extended, linear response
        • Distortion-reducing copper ring in magnetic gap
        • Lightweight black anodized aluminum cone
        • Designed and engineered in the U.S.A.



        Product details

        Dayton Audio RS100T-8 4" Reference Woofer Truncated Frame



        The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.

        Show more

        Specifications

        Article number
        RS100T-8
        Woofer Series
        Reference Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 watts
        Power Handling (max)
        60 watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        90 - 20,000 Hz
        Voice Coil Diameter
        25 mm
        DC Resistance (Re)
        6.5 ohms
        Voice Coil Inductance (Le)
        0.5 mH @ 1 kHz
        Resonant Frequency (Fs)
        94.9 Hz
        Mechanical Q (Qms)
        2.40
        Electromagnetic Q (Qes)
        0.79
        Total Q (Qts)
        0.60
        Diaphragm Mass Inc. Airload (Mms)
        2.2g
        Mechanical Compliance of Suspension (Cms)
        1.3 mm/N
        Surface Area of Cone (Sd)
        36.3 cm²
        Volume of Displacement (Vd)
        13.4 cm³
        BL Product (BL)
        3.27 Tm
        Compliance Equivalent Volume (Vas)
        2.4 liters
        Maximum Linear Excursion (Xmax)
        3.7 mm
        Cone / Diaphragm Material
        Black Anodized Aluminum Cone
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        98 mm
        Overall Depth
        51 mm
        Baffle Cutout Diameter
        77 mm
        # Mounting Holes
        4
        Sealed Volume
        0.04 ft.³
        Sealed F3
        136 Hz
        Vented Volume
        0.12 ft.³
        Vented F3
        67 Hz

        Show more

        Reviews

        3 reviews
        Review this product
        5 of 5
        Ordered 2 of these. I placed them in 1-liter closed enclosures, this is not what is recommended and I can tell by the sound, they were peaky between 800hz - 4000hz, I corrected this with a digital signal processor and added a broad boost at 450hz and a little boost below 100hz. With this tweaking, I manage to make them play very well. In Norway, a pair of bookshelf speakers with the same sound quality would easily cost 1500$ ++ very satisfied. ...

        Show more

        By Ole Kristian on 18 February 2020
        5 of 5
        Excellent for the price ,integrates very well with my active system,really impressed how well they perform in the fundamental frequency range,this price range cant fault them they sound a lot more expensive than they were.
        By Paul P. on 12 July 2019
        Show more
        RS100T-8 4" Reference Woofer Truncated Frame
        € 40,45
        € 48,95
        RS100T-8 4" Reference Woofer Truncated Frame
        1 In stock
        Add to cart
