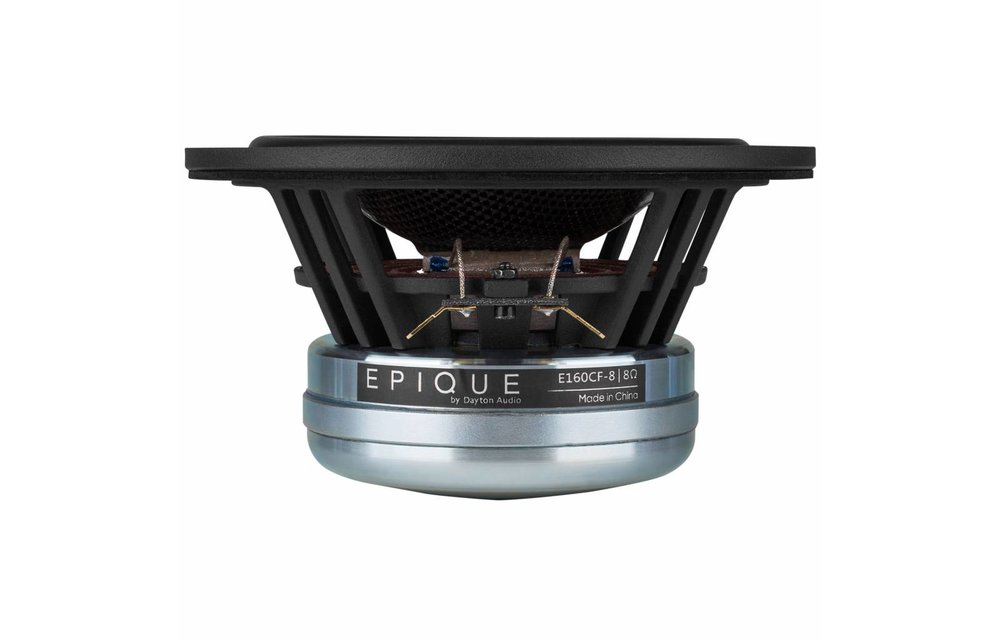

Dayton Audio Epique E160CF-8 5-1/4" Carbon Fiber Cone Neodymium Driver 8 Ohm

In stock

  • Article code: E160CF-8
  • Stock: 2 In stock

Dayton Audio raised the bar with the Epique E160CF-8 5-1/4" woofer. Constructed of high-end materials like a damped carbon fiber cone, titanium former, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion. In additi

€ 299,95 Incl. 21% VAT

  • Buy 4 for €284,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio Epique E160CF-8 5-1/4" Carbon Fiber Cone Neodymium Driver 8 Ohm

Dayton Audio raised the bar with the Epique E160CF-8 5-1/4" woofer. Constructed of high-end materials like a damped carbon fiber cone, titanium former, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion. In addition, the low moving mass, underhung voice coil, and powerful motor allows the E160CF-8 to deliver incredible dynamics and transient response.



Highlights

  • FEA optimized underhung neodymium motor minimizes distortion, increases efficiency, and improves electrical damping
  • Titanium former provides virtually no eddy currents improving efficiency and transient response
  • Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
  • Large shorting sleeve lowers inductance and extends frequency response
  • EVS™ (Extensive Venting System) allows generous airflow around the voice coil reducing power compression



Product details

Dayton Audio Epique E160CF-8 5-1/4" Carbon Fiber Cone Neodymium Driver 8 Ohm



The Epique E160CF-8 5-1/4" woofer from Dayton Audio combines high-end materials with advanced engineering to create a truly world class, no-compromise driver. Dayton Audio has scrutinized and optimized every aspect of this driver to keep distortion as low as possible while still producing impressive efficiency and a frequency response that is easy to work with. You can expect excellent off-axis and transient response from the E160CF-8 for a great sound stage and realistic sound reproduction. With top-notch components and quality construction, these drivers exemplify the axiom, "The whole is far greater than the sum of its parts."



The Epique E160CF-8 design is all about low distortion and high dynamics. The proprietary FEA optimized motor assembly uses a large neodymium magnet with top and bottom plates thick enough to provide an impressive amount of force across the magnetic gap. The pole piece includes a thick aluminum shorting sleeve that minimizes inductance and provides virtually linear impedance up to 20,000 Hz (under 12 ohms at 20,000 Hz).



Driving the cone is a 1.5" (38 mm) underhung dual layer voice coil wrapped around a titanium former that generates minimal eddy currents improving efficiency and transient response. The focal point of the E160CF-8 is the one-piece epoxy coated carbon fiber cone. Beyond good looks, this cone is extremely light, surprisingly rigid, and provides excellent damping to keep narrow peaks under control, resulting in an incredibly natural yet accurate sound. A rubber surround and large flat spider suspends the cone and keeps it linear through the limits of excursion with minimal restriction, further improving dynamics and transients.

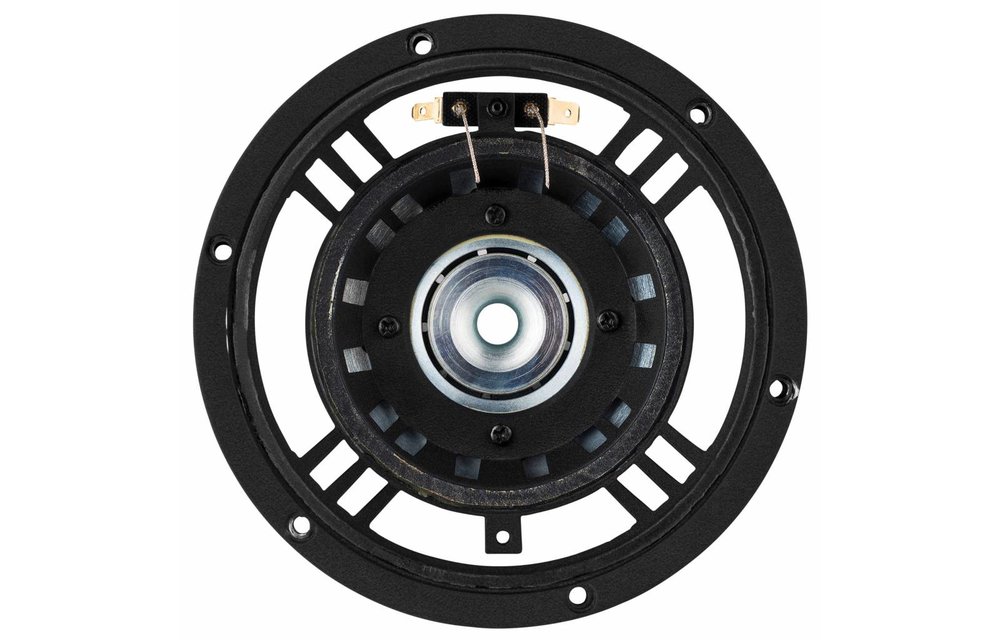

Holding everything together is the open cast aluminum frame, which is rigid but minimalistic enough to allow plenty of "breathing room" for the back side of the cone to keep reflections under control. One other aspect of this driver that deserves attention is the EVS™ (Extensive Venting System) voice coil and motor venting. To keep the voice coil and magnet cool while minimizing compression and extraneous noise the E160CF-8 has 16 large openings under the spider, 9 peripheral vents in the voice coil gap, and a large aerodynamic dual flared vent through the pole piece.

Specifications

Specifications for: Epique E160CF-8 5-1/4" Carbon Fiber Cone Neodymium Driver 8 Ohm

  • Woofer Series Specific woofer production line of the manufacturer. Epique Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 5.25"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 100 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 89.0 dB @ 2.83V/1m
  • Frequency Response 50 - 8,000 Hz
  • Voice Coil Diameter 1.5"
  • Magnet Weight
  • DC Resistance (Re) 6.1 ohms
  • Voice Coil Inductance (Le) 0.71 mH
  • Resonant Frequency (Fs) 52.5 Hz
  • Mechanical Q (Qms) 4.61
  • Electromagnetic Q (Qes) 0.51
  • Total Q (Qts) 0.46
  • Diaphragm Mass Inc. Airload (Mms) 11.3 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.82 mm/N
  • Surface Area of Cone (Sd) 108.8 cm²
  • Volume of Displacement (Vd) 43.5 cm³
  • BL Product (BL) 6.7 Tm
  • Compliance Equivalent Volume (Vas) 13.7 liters
  • Maximum Linear Excursion (Xmax) 4.0 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Carbon Fiber
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Titanium
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 6.19"
  • Overall Depth 1.46"
  • Baffle Cutout Diameter 5.31"
  • Bolt Circle Diameter 5.79"
  • # Mounting Holes 6
  • Mounting Hole Diameter
  • Sealed Volume 0.18 ft.³
  • Sealed F3 97 Hz
  • Vented Volume 0.58 ft.³
  • Vented F3 51 Hz
