    Dayton Audio DTA-1 Class T AC/DC Battery Powered Mini Amplifier 15 WPC

    € 39,63€ 47,95 >10 In stock: delivery time 1-4 business days
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Dayton Audio's DTA-1 mini amplifier has the heart of a serious performer, in a truly portable package. The DTA-1's Class-T output chip produces imaging, dynamics, and sound quality that rival esoteric tube amps—up to 15 watts per channel is on tap to push compact speakers.



    • Palm-size Class-T 30 watt amplifier
    • Great sounding amp—also convenient for travel
    • Battery or AC powered—power supply included—for perfect portability
    • 88% amplifier efficiency prolongs battery life
    • Superior, hi-fi sound quality
    • Soft turn-on eliminates annoying speaker pop
    • CE and RoHS rated design


    Product details

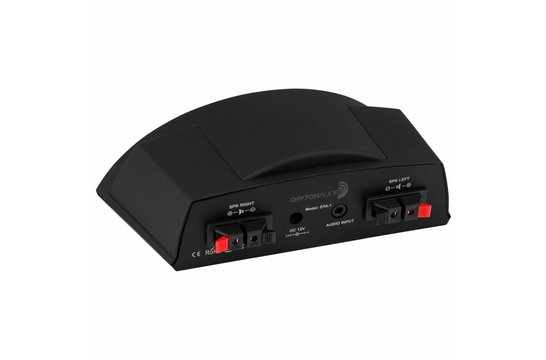

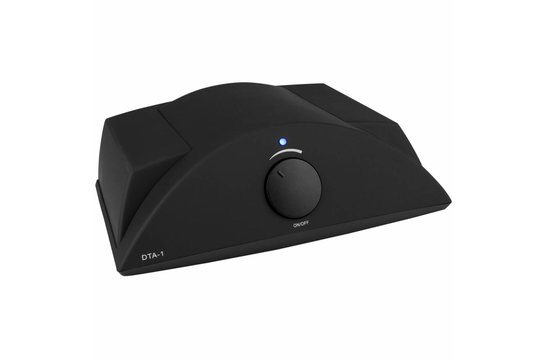

    Dayton Audio DTA-1 Class T AC/DC Battery Powered Mini Amplifier 15 WPC


    Don't let the compact size fool you—Dayton Audio's DTA-1 mini amplifier is a serious piece of audio gear. A proprietary Class-T amplifier chip enables the DTA-1 to be 88% efficient while still producing pristine, high-resolution output. This makes the DTA-1 T-Amp an obvious choice for powering high efficiency single driver speakers. Up to 15 watts of power per channel is on tap to drive desktop and bookshelf speakers, for the ultimate portable hi-fi setup at home or in your office.

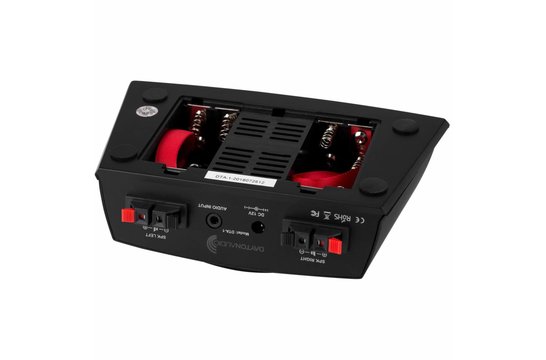

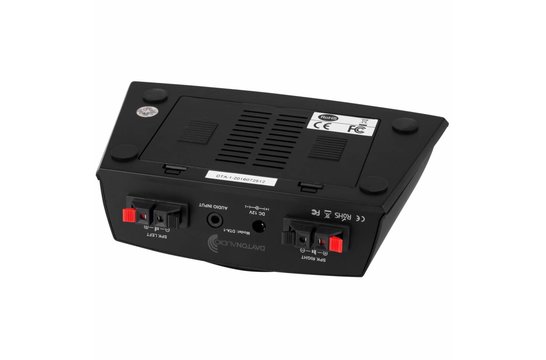

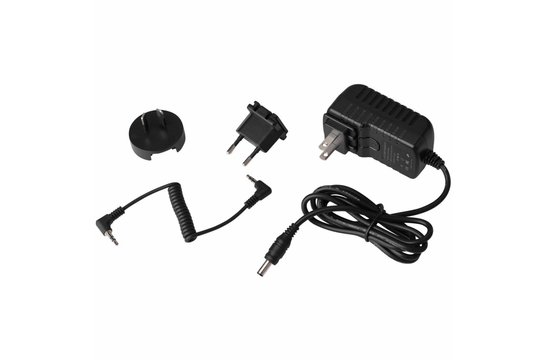

    The Dayton Audio DTA-1 T-Amp can run off of 8 AA batteries for total portability, or the included switching power supply (with quick-release US and European style plugs) for stationary use. A rear mounted 3.5 mm stereo (1/8") audio input is provided. The amplifier also includes a 6" long, coiled male-to-male 3.5 mm cable for making connections to iPods, MP3 players, PCs, and portable CD or DVD players. Spring-loaded push terminals are incorporated for quick speaker wire termination. Intelligent short-circuit and over-temperature protection ensure amplifier longevity. The Dayton Audio DTA-1 is the perfect replacement for the now unavailable Sonic Impact 5066 NIB class T amplifier. Dayton Audio has taken the technology developed for the Sonic Impact 5066 and perfected it in this hand-held digital amplifier. Includes 12 VDC, 2A power supply.


    Article number
    Rated power output (RMS)
    2 x 15 Watts at 4 ohms
    Bridged power output (RMS)
    Minimum load
    4 ohm
    Signal-to-noise ratio (SNR)
    103 dB
    0.1% - 10% (10 - 15 Watts)
    Distortion bridged
    Frequency response
    20 - 20,000 Hz
    2k ohm 5±%
    Input sensitivity
    Auto turn-on sensitivity
    Maximum sampling rate
    Circuit Topology
    Amplifier classification
    Class D
    Speaker output channels
    Subwoofer output channel
    Analog in/out
    Optical S/PDIF in/out
    Coaxial in/out
    RCA in/out
    AUX in/out
    Bus in/out
    XLR in/out
    Memory card slot
    Network connection
    Headphone jack
    Subwoofer pre-out
    Banana plug compatible
    Remote control
    App control
    Auto turn-on
    Accepted file formats
    Equalizer (EQ) adjustment
    Equalizer (EQ) profiles
    Multi zone/room
    Crossover frequency adjustment
    Bridge mode
    Power requirements
    12 VDC or 8 "AA" batteries
    Power inlet connector
    DC jack or batteries
    Power consumption
    Stand-by power consumption
    Dimensions (D x W x H)
    89 x 152 x 51 mm
    Case material


    5 from 5Based on 7 reviews
    Review this product
    4 of 5
    Das kleine Ding tut genau das, was es tun soll: Im Büro vom Rechner über die kleinen Breitbänder gute Musik machen :-)
    By Ludger S. on 18 March 2021
    5 of 5
    sounds very good, easy to connect.
    By Jean Frederic d. on 19 May 2020
