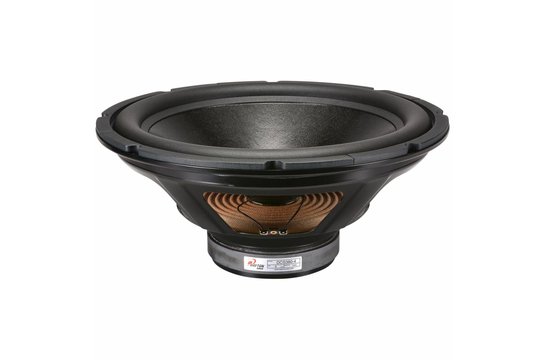

Dayton Audio DCS380-4 15" Classic Subwoofer 4 Ohm

Brand: Dayton Audio

Show all Subwoofer

Compare

15" | 4 Ω

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

DCS380-4 15" Classic Subwoofer 4 Ohm

€ 138,80€ 167,95 2 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Excellent general-purpose subwoofer that works well in sealed or vented enclosures.

Highlights

Heavy-duty treated paper cone for high stiffness-to-weight ratio
2" aluminum former, 4-layer voice coil, and large vented pole piece for high power handling
Large diameter flat spider and healthy Xmax for clean bass

Product details

Dayton Audio DCS380-4 15" Classic Subwoofer 4 Ohm

The Dayton Audio Classic 15" Subwoofer is an excellent general-purpose subwoofer that works well as a replacement in powered subwoofer systems, or for new system design and construction. For the utmost versatility, the parameters are suitable for sealed or vented enclosures. The heavy-duty cone, wide-roll rubber surround, and long linear excursion ensure excellent low-bass performance.

Specifications

Article number: DCS380-4
Woofer Series: Classic Series
Woofer Type: Subwoofer
Nominal Diameter: 15"
Power Handling (RMS): 250 watts
Power Handling (max): 500 watts
Impedance (Z): 4 ohms
Sensitivity: 93.6 dB @ 2.83V/1m
Frequency Response: 20 - 500 Hz
Voice Coil Diameter: 51 mm
DC Resistance (Re): 2.9 ohms
Voice Coil Inductance (Le): 2.31 mH @ 1 kHz
Resonant Frequency (Fs): 21.5 Hz
Mechanical Q (Qms): 3.79
Electromagnetic Q (Qes): 0.49
Total Q (Qts): 0.44
Diaphragm Mass Inc. Airload (Mms): 190g
Mechanical Compliance of Suspension (Cms): 0.29 mm/N
Surface Area of Cone (Sd): 819.4 cm²
Volume of Displacement (Vd): 688.3 cm³
BL Product (BL): 12.4 Tm
Compliance Equivalent Volume (Vas): 267 liters
Maximum Linear Excursion (Xmax): 8.4 mm
Cone / Diaphragm Material: Paper Cone
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Kapton® / Polyimide
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 385 mm
Overall Depth: 186 mm
Baffle Cutout Diameter: 349 mm
# Mounting Holes: 8
Sealed Volume: 3.84 ft.³
Sealed F3: 40 Hz
Vented Volume: 12.77 ft.³
Vented F3: 21 Hz

Data sheet

Reviews

5 from 5Based on 3 reviews

Review this product

5 of 5

uncredible worthy :)

By David M. on 14 April 2021

5 of 5

No description was given

By Veli K. on 2 March 2021

Show more

DCS380-4 15" Classic Subwoofer 4 Ohm

€ 138,80

€ 167,95

DCS380-4 15" Classic Subwoofer 4 Ohm

2 In stock: delivery time 1-4 business days
