Visaton PACTO | DIY Components Pack | Sold Per Piece
This DIY speaker KIT is Visaton’s answer on the question, if it is possible to design a small bookshelf speaker with a balanced soundstage and powerful bass reproduction.
Highlights
- F.A.S.T. (Full-range and Subwoofer Technology)
- Compact 13 liter enclosure
- Simple but effective series crossover
Product Details
Visaton PACTO DIY Components Pack

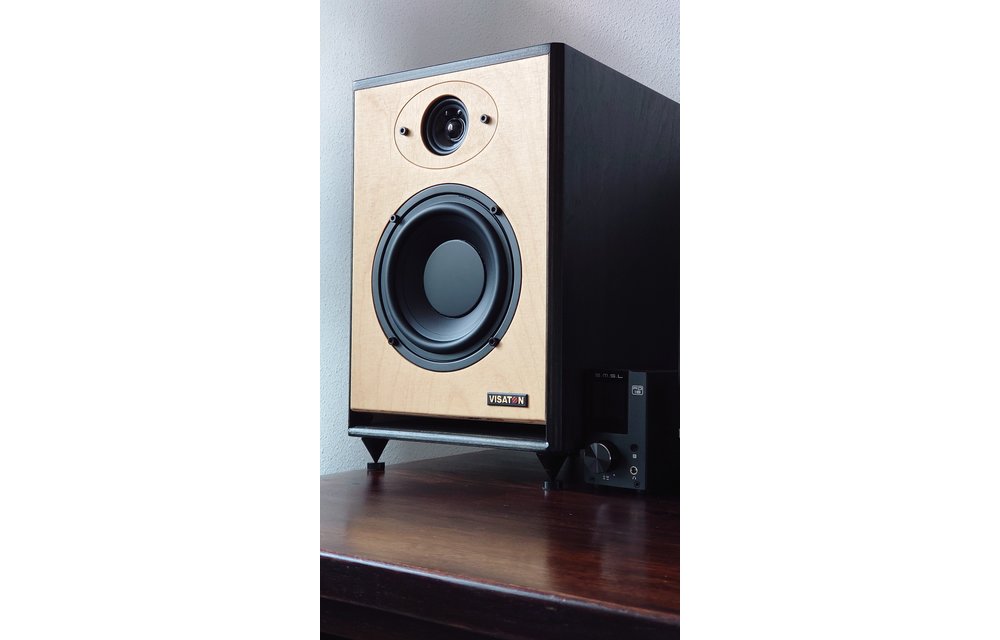

The PACTO is a F.A.S.T. speaker design with a compact bass reflex enclosure. The FR 58 full-range driver is combined with the W 130 X subwoofer to ensure a powerful low frequency reproduction. The drivers share a crossover point of 250 Hz thanks to a simple three part crossover. The critical frequency range is delivered through a single driver for precise imaging an accurate soundstage reproduction. Thanks to the front located bassreflex slot, this compact speaker can be positioned close or even against to the backwall.

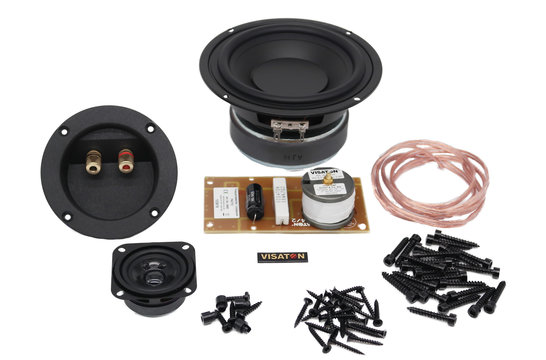

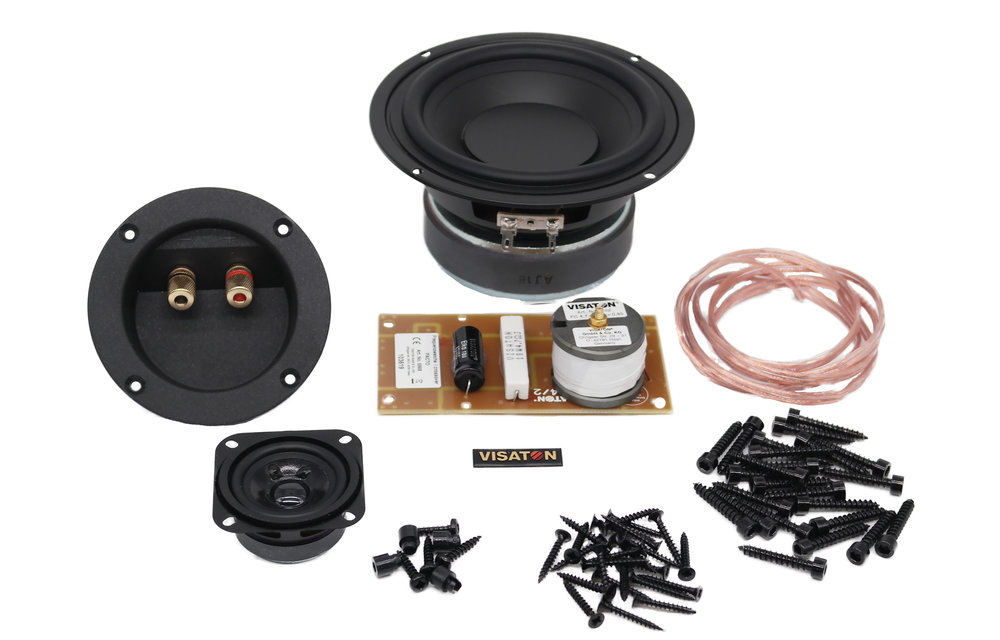

Included Components:
|
Qty |
Article code |
Title |
|
1 |
Visaton W 130 X Subwoofer |
|
|
1 |
Visaton FR 58 – 8 Full-range Driver |
|
|
1 |
- |
Visaton PACTO crossover |
|
1 |
- |
Visaton ST 77 round terminal cup |
|
8 |
- |
Screw 3.5 x 25 mm (countersunk) |
|
4 |
- |
Screw 4 x 25 mm (round head) |
|
1 |
- |
Cable 2 x 1.5 mm² |
Note: Cabinets are not included.
