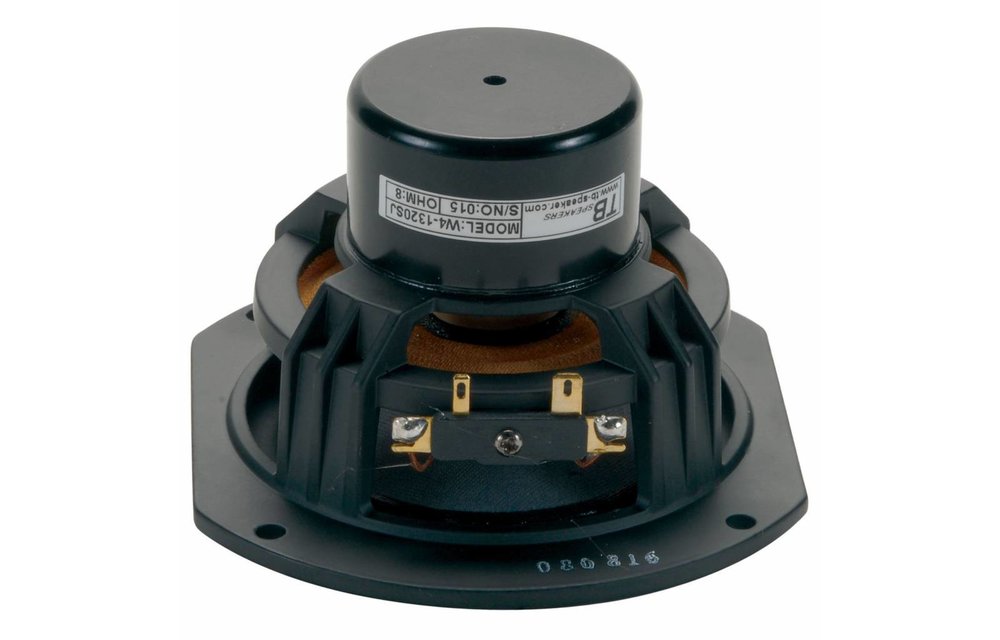

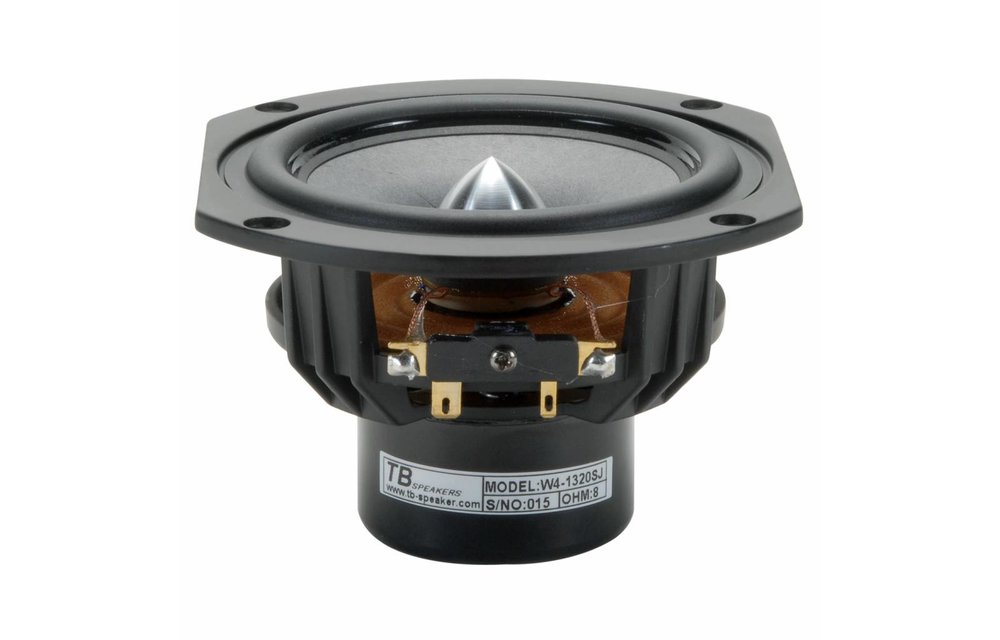

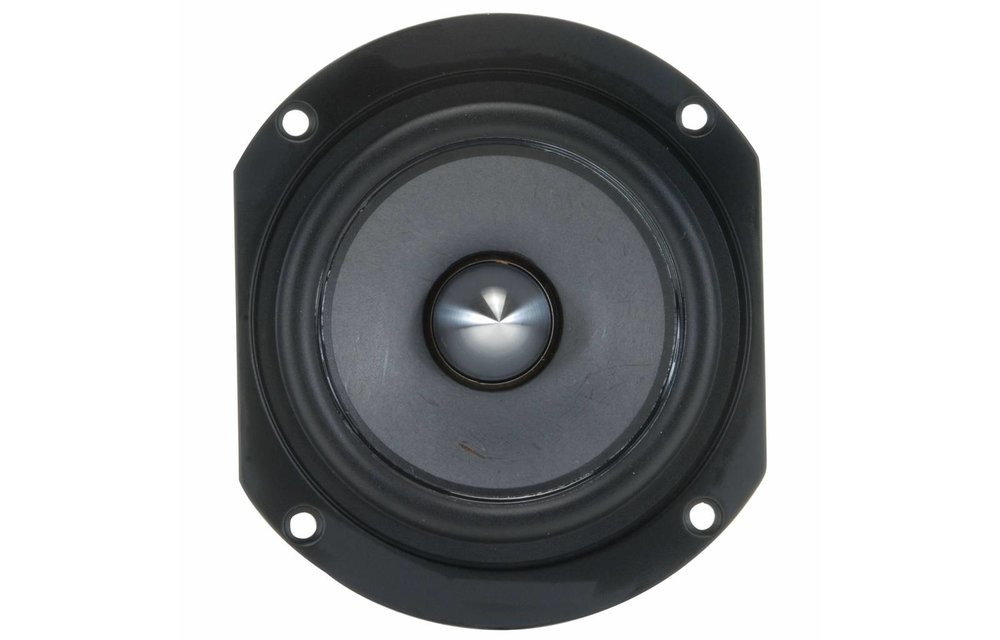

    Tang Band W4-1320SJ 4" Bamboo Cone Driver

    Marke: Tang Band
    Alle anzeigen Audio-Komponenten
    4" | 8 Ω
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    € 84,95 4 Auf Lager: Lieferzeit 1-3 Werktage
    A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further.... Mehr anzeigen
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Kauf 4 für nur €80,70 pro stück
    +-
    In den Warenkorb legen
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag*
    • Hausinterner technischer Support
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver
    W4-1320SJ 4" Bamboo Cone Driver

    Produktbeschreibung

    A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further.



    Highlights

    • Long throw, high power loading design
    • Bamboo fiber paper cone with rubber surround
    • Die cast basket
    • Vented pole piece
    • Neodymium design, magnetic shielded, Underhung design
    • Low 2nd, 3rd distortion design



    Product details

    Tang Band W4-1320SJ 4" Bamboo Cone Driver



    Another Tang Band first, Bamboo fiber cones! A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.

    Eigenschaften

    Artikelnummer:
    W4-1320SJ
    Woofer Type
    Full-range
    Nominal Diameter
    4"
    Power Handling (RMS)
    25 Watts
    Power Handling (max)
    50 Watts
    Impedance
    8 ohms
    Sensitivity
    89 dB 1W/1m
    Frequency Response
    75 to 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6.8 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Resonant Frequency (Fs)
    75 Hz
    Mechanical Q (Qms)
    1.29
    Electromagnetic Q (Qes)
    0.49
    Total Q (Qts)
    0.35
    Diaphragm Mass Inc. Airload (Mms)
    3.49g
    BL Product (BL)
    4.7 Tm
    Compliance Equivalent Volume (Vas)
    0.21 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Cone / Diaphragm Material
    Bamboo Fiber / Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Shielded
    Yes
    Overall Outside Diameter
    4.28"
    Overall Depth
    2.63"
    Baffle Cutout Diameter
    3.7"
    # Mounting Holes
    4
    Sealed Volume
    0.05 ft.³
    Sealed F3
    169 Hz
    Vented Volume
    0.11 ft.³
    Vented F3
    98 Hz
