Tang Band W4-1052SD 4" Driver 4 Ohm

€ 44,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The unique ultra-thin polypropylene cone maintains strength via special ridges in the cone, while having a very low moving mass. A long voice coil, rubber surround, and phase plug allow good use of this drivers 4 mm of Xmax.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

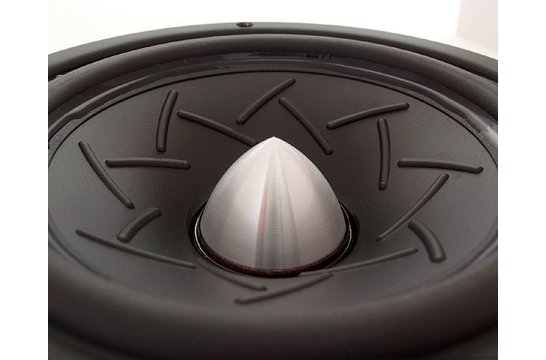

The unique ultra-thin polypropylene cone maintains strength via special ridges in the cone, while having a very low moving mass. A long voice coil, rubber surround, and phase plug allow good use of this drivers 4 mm of Xmax.



Highlights

  • Full range design
  • Structured PP cone with wide range temperature rubber surround, stable F0
  • Neodymium design
  • Stamped steel basket
  • Magnetically shielded
  • Good for home theater, multimedia, car application



Product details

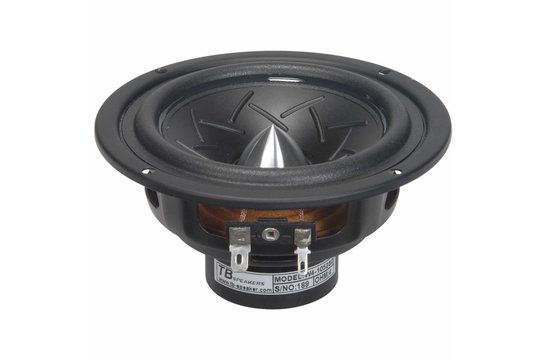

Tang Band W4-1052SD 4" Driver 4 Ohm



A neodymium-powered 4" driver, this unit offers great bass extension and a smooth frequency response. The unique ultra-thin polypropylene cone maintains strength via special ridges in the cone, while having a very low moving mass. A long voice coil, rubber surround, and phase plug allow an effective use of this drivers 3.4 mm of Xmax. 4 ohm impedance is great for automotive use or high-sensitivity designs.

Eigenschaften

Artikelnummer:
W4-1052SD
Woofer Type
Full-range
Nominal Diameter
4"
Power Handling (RMS)
20 Watts
Power Handling (max)
40 Watts
Impedance
4 ohms
Sensitivity
87 dB 1W/1m
Frequency Response
60 to 15,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.8 ohms
Voice Coil Inductance (Le)
0.06 mH
Resonant Frequency (Fs)
70 Hz
Mechanical Q (Qms)
4.52
Electromagnetic Q (Qes)
0.49
Total Q (Qts)
0.44
Diaphragm Mass Inc. Airload (Mms)
3.85g
Mechanical Compliance of Suspension (Cms)
1.64 mm/N
Surface Area of Cone (Sd)
57 cm²
BL Product (BL)
3.44 Tm
Compliance Equivalent Volume (Vas)
0.27 ft.³
Maximum Linear Excursion (Xmax)
3.4 mm
Cone / Diaphragm Material
Poly
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Neodymium
Shielded
Yes
Overall Outside Diameter
4.57"
Overall Depth
2.36"
Baffle Cutout Diameter
3.66"
# Mounting Holes
4
Sealed Volume
0.09 ft.³
Sealed F3
122 Hz
Vented Volume
0.27 ft.³
Vented F3
65 Hz

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Great little speaker. I used 2 in my DIY Bluetooth speaker project with Dayton Audio passives and they sound great. Also they are very sensitive what makes them great choice for low power portable solutions. One of the two arrived faulty but Sound Imports sent me a new one.
Durch Tommi on 20 April 2020
