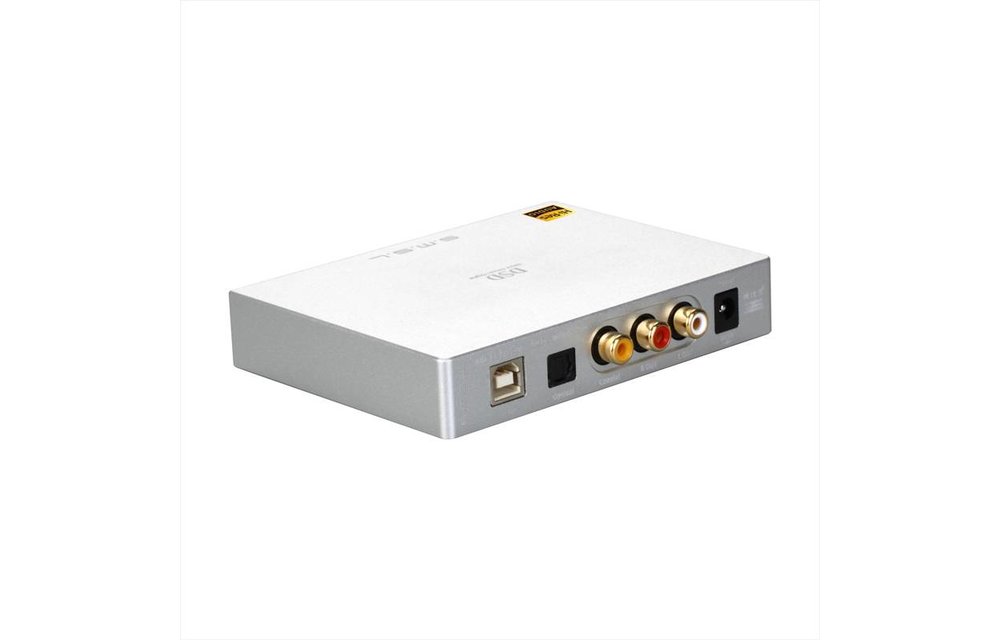

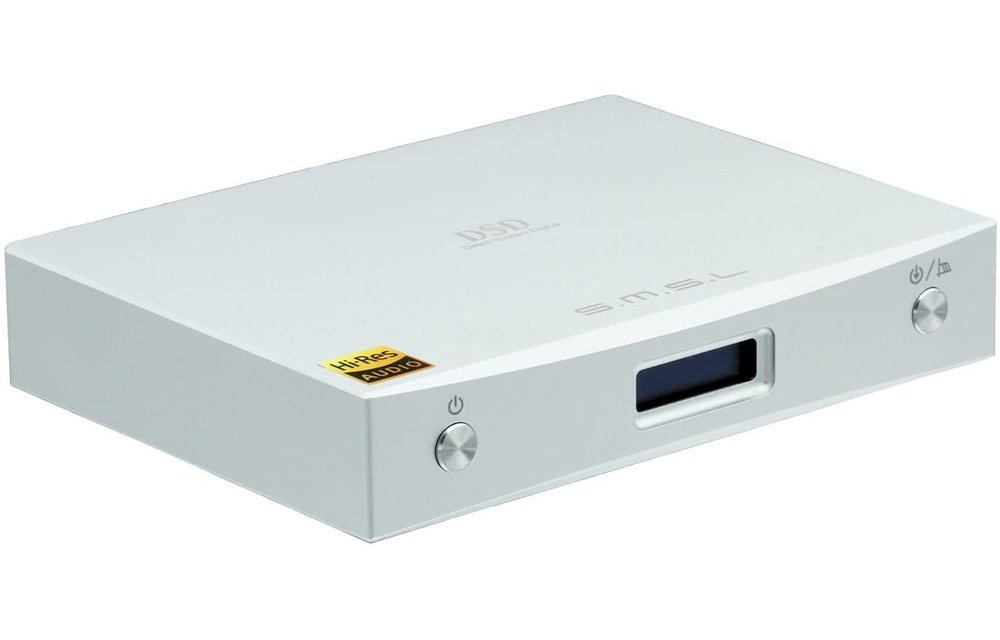

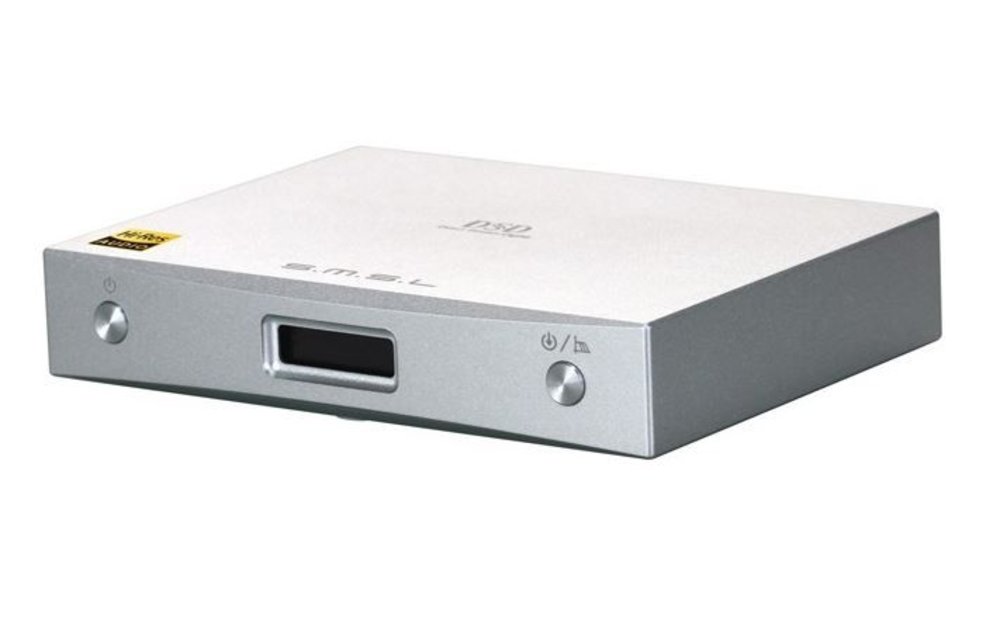

SMSL M8A Hifi Audio USB DAC
The SMSL M8A DAC brings you High Resolution audio quality at an ultra-small footprint using the latest technologies and the finest components out there.
Highlights
- High resolution audio
- Audiophile components
- Dedicated OPAMP
- Cutting edge technology such as 2nd gen. XMOS
Product Details
SMSL M8A Hi-Res audio USB DAC
The SMSL M8A is the upgraded version of the M8. Higher quality components were used to drastically improve sound quality. One part of the upgrade was adding a dedicated OPAMP to replace the standard NE5532 chip, giving it a more tube-like sound with warmer mids thus reducing listening fatigue. The DAC is complimented by a low jitter clock system and unlike its predecessor, the M8A now boasts second generation XMOS technology with asynchronous transmission through USB connection. This results in an enormous sampling rate of up to 768kHz through USB connection.
All of these features are packed into a tiny, slick aluminum enclosure which is definitely a nice addition to your desktop but doesn’t draw as much attention as the larger DAC’s out there.
Technical Specifications
|
DAC chip |
ES9038Q2M |
|
Operational amplifier |
OPA1612 |
|
Output power level |
2V rms |
|
THD+N |
<0.0003% |
|
SNR |
117dB |
|
Dynamic Range |
125dB |
|
Sample rate USB |
768kHz (32Bit) |
|
Sample rate optical/coaxial |
192kHz (24Bit) |
|
Inputs |
USB, Optical, Coaxial |
|
Outputs |
RCA |
|
Dimensions (excluding protrusions) |
4.72 x 3.85 x 0.87 in. (120 x 98 x 022 mm) |
