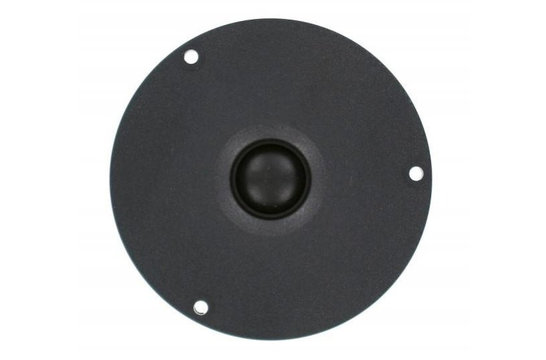

Scan-Speak Classic D2008/851100 3/4" Textile Dome Tweeter

Marke: Scan-Speak

Alle anzeigen Audio-Komponenten

Vergleichen

3/4" | 8 Ω

Classic D2008/851100 3/4" Textile Dome Tweeter

€ 69,95 5 Auf Lager: Lieferzeit 1-3 Werktage

Double chambered 3/4" damped textile dome tweeter. The voice coil is a precision wound aluminum wire with a 27 strand tinsel braid for a lower resonance. The magnet system is a special high flux ferrite with vented pole plates. The surround of the diaphra... Mehr anzeigen

Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Bezahlung mit PayPal, Kreditkarte und mehr
Hausinterner technischer Support

Produktbeschreibung

Highlights

3/4" Textile Dome Diaphragm
Dual Rear Chamber
Wide Dispersion
Vented pole piece
No Ferro Fluid

Product details

Scan-Speak Classic D2008/851100 3/4" Textile Dome Tweeter

The D2008 851200 tweeter's extremely linear response, low distortion and wide dispersion make it an attractive choice for any speaker system.

Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.4 Tm • Mechanical Compliance of Suspension (Cms): 0.30 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.2 g • Maximum Linear Excursion (Xmax): 0.8 mm • Surface Area of Cone (Sd): 3.8 cm²

Eigenschaften

Artikelnummer:: D2008/851100
Tweeter Type: Dome
Tweeter Series: Classic Series
Cone / Dome Diameter: 3/4"
Power Handling (RMS): 90 Watts
Power Handling (max): 150 Watts
Impedance: 8 ohms
Sensitivity: 89 dB 2.83V/1m
Resonant Frequency (Fs): 650 Hz
DC Resistance (Re): 5.7 ohms
Voice Coil Inductance (Le): 0.08 mH
Mechanical Q (Qms): 1.90
Electromagnetic Q (Qes): 0.81
Total Q (Qts): 0.57

Data sheet
