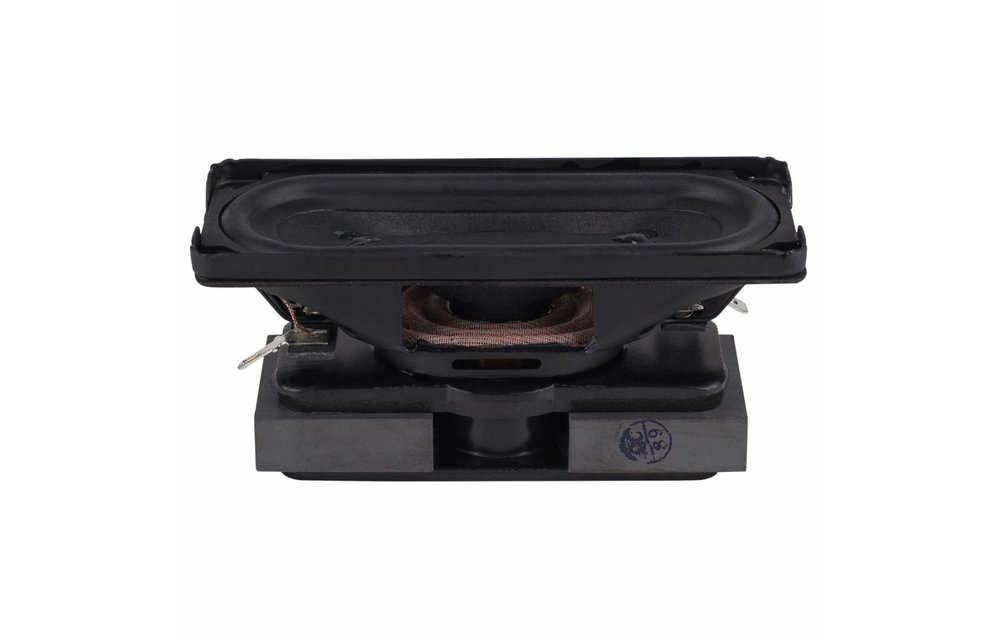

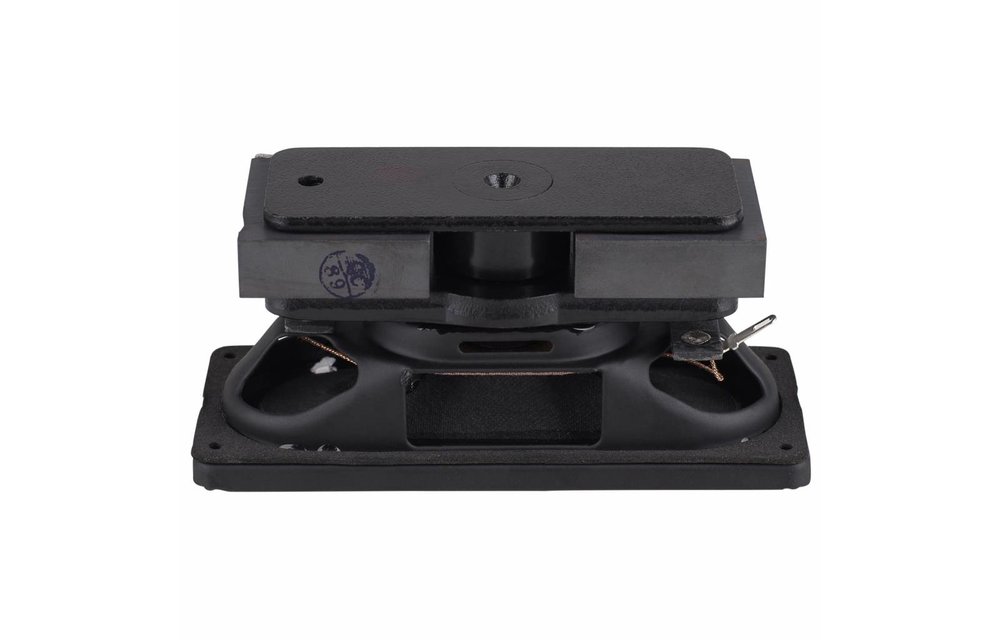

Peerless by Tymphany TC2X4FB00-08 1-3/4" x 4" woofer

€ 26,45 6 Auf Lager: Lieferzeit 1-3 Werktage
The unique TC2X4FB00-08 from Peerless is an ideal woofer for use in slim designs such as sound bars and portable Bluetooth speakers. This 2" x 4" driver has impressive mechanical excursion and low Fs for powerful low frequency reproduction.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €25,13 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The unique TC2X4FB00-08 from Peerless is an ideal woofer for use in slim designs such as sound bars and portable Bluetooth speakers. This 2" x 4" driver has impressive mechanical excursion and low Fs for powerful low frequency reproduction.



Highlights

  • Aluminum shorting ring lowers inductance and improves damping
  • Powerful dual staggered magnet system for excellent cone control
  • Ample voice coil venting for minimal compression and improved power handling
  • Unique reinforced oval cone minimizes cone resonances



Product details

Peerless TC2X4FB00-08 1-3/4" x 4" Rectangle Full-Range Woofer 8 Ohm



This Peerless TC family 1.75" x 4" inch 8 ohm rectangle woofer with a dual staggered magnet, paper cone, rubber surround, and steel basket, is designed to be a cost-effective high performance small woofer for use in slim speaker designs. The motor contains an aluminum ring to lower inductance and distortion. Designed with television and other special compact applications in mind, the TC2X4FB00-08 in one unique driver.

Eigenschaften

Artikelnummer:
TC2X4FB00-08
Woofer Series
TC&TG Series
Woofer Type
Midwoofer
Nominal Diameter
2-1/2" x 4"
Power Handling (RMS)
10 Watts
Power Handling (max)
20 Watts
Impedance
8 ohms
Sensitivity
80.2 dB 2.83V/1m
Frequency Response
60 to 1,000Hz
Voice Coil Diameter
0.64"
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.62 mH
Resonant Frequency (Fs)
85 Hz
Mechanical Q (Qms)
7.65
Electromagnetic Q (Qes)
0.88
Total Q (Qts)
0.79
Diaphragm Mass Inc. Airload (Mms)
3.9 g
Mechanical Compliance of Suspension (Cms)
0.899 mm/N
Surface Area of Cone (Sd)
24.2 cm2
BL Product (BL)
3.84 Tm
Compliance Equivalent Volume (Vas)
0.026 ft.³
Maximum Linear Excursion (Xmax)
1.5 mm
Sealed Volume
0.045 ft.³
Sealed F3
96 Hz
Vented Volume
0.098 ft.³
Vented F3
51 Hz
