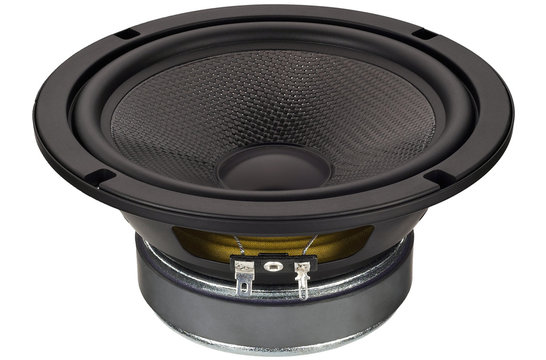

Monacor SP-6/108PRO Carbon Fiber Cone PA Midbass Woofer

€ 62,95 6 Auf Lager: Lieferzeit 1-3 Werktage
6.5" professional bass-midrange speaker for PA and hi-fi. Featuring a high-quality carbon fiber cone, low distortion and a smooth frequency response.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €59,80 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

6.5" professional bass-midrange speaker for PA and hi-fi. Featuring a high-quality carbon fiber cone, low distortion and a smooth frequency response.



Highlights

  • High-quality carbon fiber cone
  • Excellent sound and dynamic characteristics
  • Heat-resistant voice coil wound on the inside and outside
  • Low frequency response and low distortion, but nevertheless of a high efficiency



Product details

Monacor SP-6/108PRO Carbon Fiber Cone PA Midbass Woofer



Proven to be very reliable in hi-fi, PA and monitor applications, the Monacor SP-6/108PRO Carbon Fiber Cone PA Midbass Woofer makes for a  compact bass-midrange speaker of high power capability for smaller PA applications. It is very well-suited for combination with the DT-300 dome tweeter and the WG-300 waveguide for both professional and home audio use.

Eigenschaften

Artikelnummer:
SP-6/108PRO
Woofer Type
Midwoofer
Nominal Diameter
6.5''
Power Handling (RMS)
100 Watts
Power Handling (max)
150 Watts
Impedance
8 ohms
Sensitivity
92dB 1W/1m
Frequency Response
40-4,500Hz
Voice Coil Diameter
30 mm
Magnet Weight
570 g
DC Resistance (Re)
5.74 ohms
Voice Coil Inductance (Le)
0.43 mH
Resonant Frequency (Fs)
44 Hz
Mechanical Q (Qms)
4.28
Electromagnetic Q (Qes)
0.35
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
13.14 g
Mechanical Compliance of Suspension (Cms)
0.97 mm/N
Surface Area of Cone (Sd)
137 cm2
BL Product (BL)
7.46 Tm
Compliance Equivalent Volume (Vas)
25.5 l
Maximum Linear Excursion (Xmax)
± 3 mm
Cone / Diaphragm Material
Carbon Fiber
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton
Basket / Frame Material
Stamped steel
Magnet Material
Ferrite
Overall Outside Diameter
168 mm
Overall Depth
78 mm
Baffle Cutout Diameter
142 mm
# Mounting Holes
4
Mounting Hole Diameter
4
