Monacor SP-155X 6'' Truncated Full Range Driver 8 Ohm

€ 24,75€ 29,95 Nicht auf Lager: Lieferzeit beträgt 3 Werktage
A high efficiency full range woofer with improved high frequency dispersion thanks to the whizzer cone and therefore a jack of all trades; should it be PA, home audio or instrument amplification.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

A high efficiency full range woofer with improved high frequency dispersion thanks to the whizzer cone and therefore a jack of all trades; should it be PA, home audio or instrument amplification.



Highlights

  • High efficiency
  • Relatively linear frequency response
  • Improved high frequency dispersion thanks to the whizzer cone



Product details

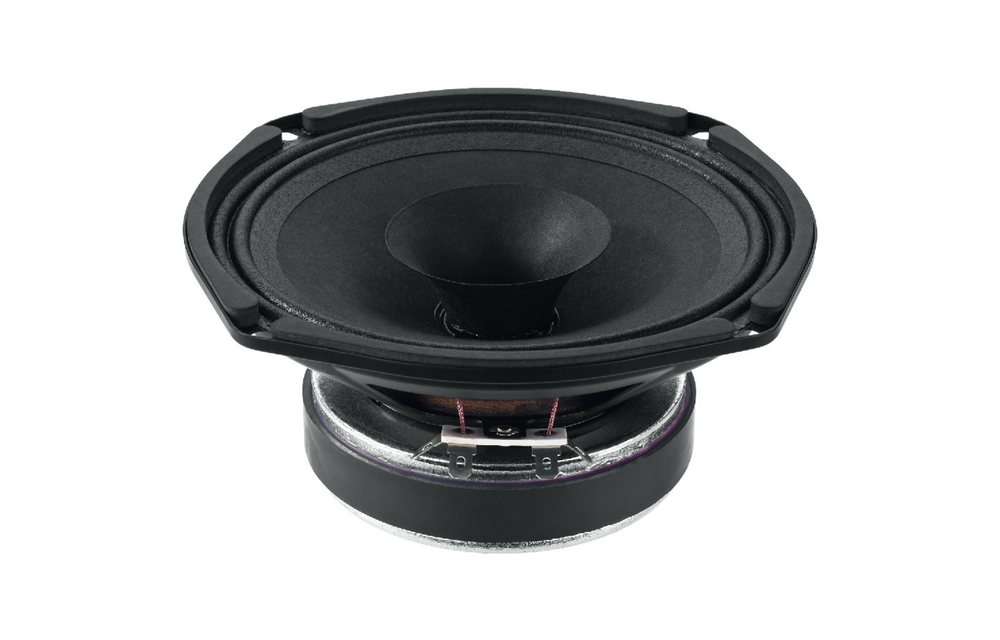

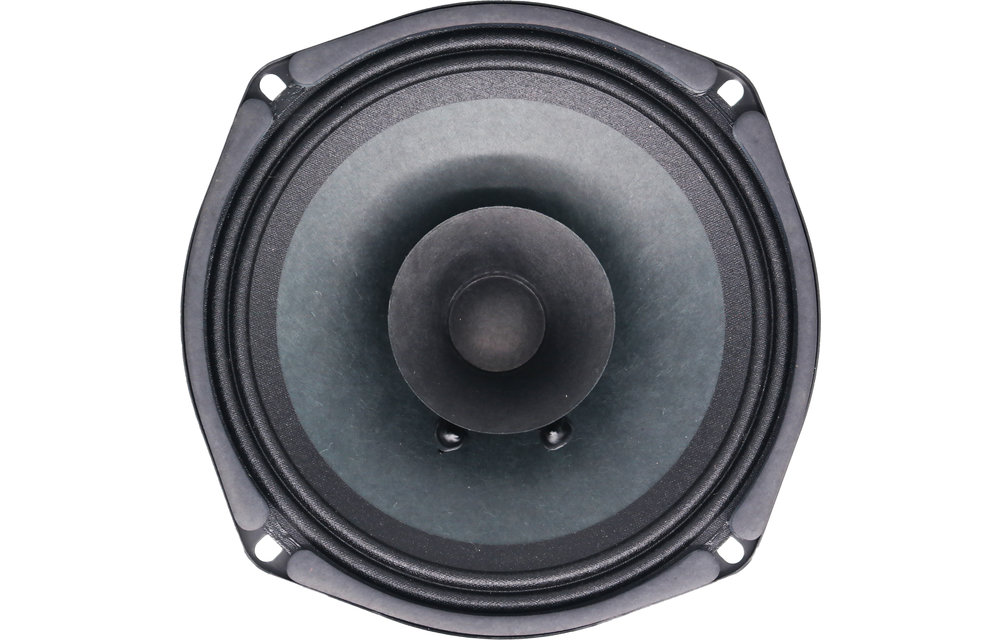

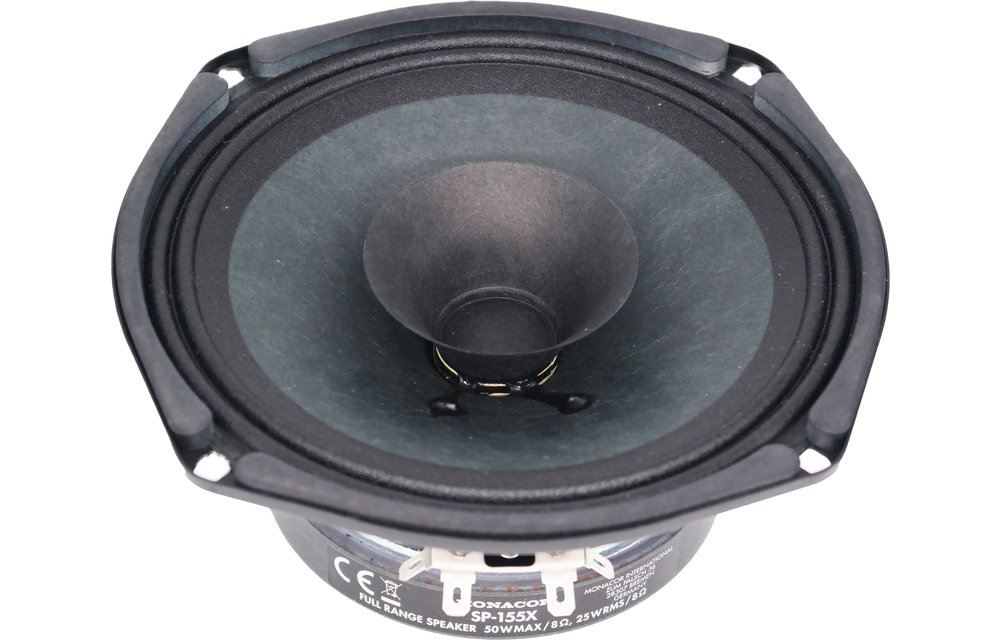

Monacor SP-155X 6'' Truncated Full Range Driver 8 Ohm



The Monacor SP-155X is a high efficiency 6’’ full range driver with a surprisingly linear response and a boosted low-midrange to compensate for the baffle step losses. Furthermore it exhibits all the positive characteristics of a full range speaker, such as the point source reproduction, with reduced beaming in the highs thanks to the well-integrated whizzer cone: The best of both worlds!



It is efficient enough to be a very competent PA woofer but it is also very well suited for home audio purposes, especially high efficiency point source speaker systems.

Eigenschaften

Artikelnummer:
SP-155X
Woofer Type
Full-range
Nominal Diameter
6''
Power Handling (RMS)
25 Watts
Power Handling (max)
50 Watts
Impedance
8 Ohms
Sensitivity
93 dB 1W/m
Frequency Response
70-16,000 Hz
Voice Coil Diameter
25.5 mm
Magnet Weight
380 g
DC Resistance (Re)
6.5 Ohms
Voice Coil Inductance (Le)
0.4 mH
Resonant Frequency (Fs)
70 Hz
Mechanical Q (Qms)
0.67
Electromagnetic Q (Qes)
0.88
Total Q (Qts)
0.67
Diaphragm Mass Inc. Airload (Mms)
6.5 g
Mechanical Compliance of Suspension (Cms)
0.75 mm/N
Surface Area of Cone (Sd)
117 cm2
BL Product (BL)
4.60 Tm
Compliance Equivalent Volume (Vas)
14 l
Maximum Linear Excursion (Xmax)
1 mm
Cone / Diaphragm Material
Paper
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Stamped steel
Magnet Material
Ferrite
Overall Outside Diameter
155 mm
Overall Depth
75 mm
Baffle Cutout Diameter
146 mm
# Mounting Holes
4
Mounting Hole Diameter
5 mm

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
I am happy with this product.
Durch Roman G. on 27 Juni 2020
5 van 5
I replaced the original drivers in a pair of Vintage Tandberg speakers with the monacor SP-155X Full-range Woofer. It turned out very well, I must say. Don't forget that new speakers need time to open up. Mine opened up after 20-30 hours of playing
Durch Pär K. on 10 Mai 2020
