Markaudio Alpair-10P Paper Cone 6" Full Range Woofer

€ 95,-€ 114,95 3 Auf Lager: Lieferzeit: 1-2 Werktage
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €109,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

This Alpair 10P Gen.1 represents a significant development of Markaudio Full-range drivers. The production history of the Alpair 10 series is well known inside purist audiophile circles but this is the first time that a paper cone version has appeared in the 10 series.



Highlights

  • Ultra-wide dispersion characteristic
  • Lightest from the coils deployed in this size range class
  • High quality lower power amplification and audiophile level source



Product details

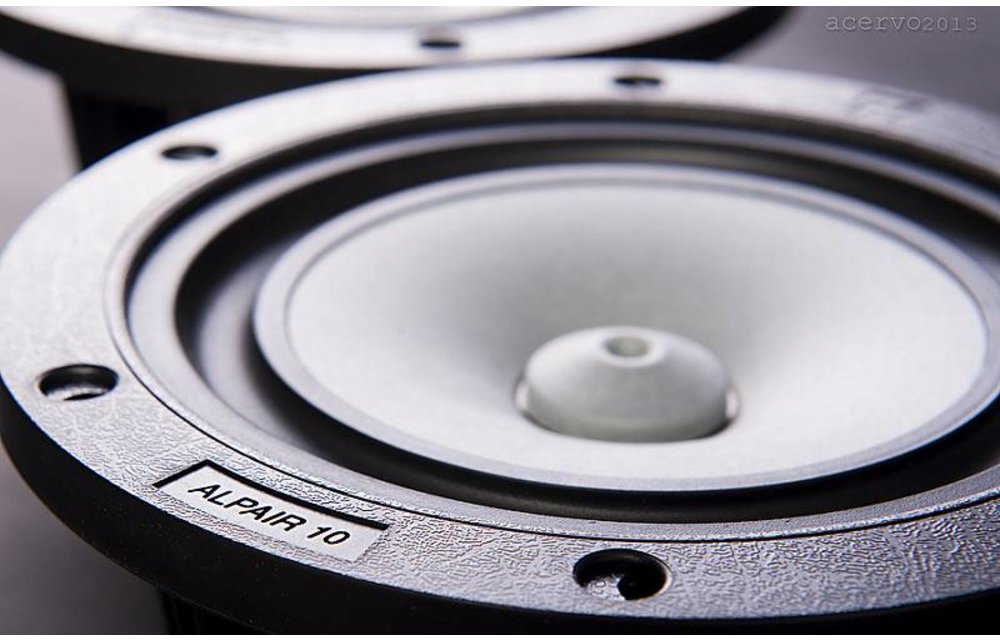

MarkAudio Alpair-10P Paper Cone 6" Full Range



This Alpair 10P Gen.1 represents a significant development of Markaudio Full-range drivers. The production history of the Alpair 10 series is well known inside purist audiophile circles but this is the first time that a paper cone version has appeared in the 10 series.



The cone is the most radical shallow design Markaudio has produced for this size of driver. To maintain its stability, the materials used include an arrangement of glass reinforced fibres. The dispersion characteristic is ultra-wide. The 10P is frequency range capable to +25-kHz with an efficiency of 89.5dB. These efficiencies were achieved by considerable design efforts to reduce mass. The 10Pʼs power train under moving mass conditions is less than 5.2g while retaining Markaudioʼs “long throw” design feature. The coil winding is “high stress” type forming the tight band arrangement on its body. The result is one of the lightest coils deployed is this size class, weighing under 2.2g.



The power-train suspension compliance is extremely sensitive. It is capable of large extension for this class of Full-Range audio driver (7-mm 1 way, limited by the Arrestor).



The Alpair 10P is a “purist” technical driver. Its purpose is to serve the audiophile and experimental markets. Due to the highly emittance-sensitive power-train, this driver will need users to take note of the need for high quality lower power amplification and audiophile level source. The Alpair 10P should not be considered as a “general purpose” emitter.

Eigenschaften

Artikelnummer:
Alpair-10P
Tieftöner-Serie
Alpair Series
Tieftönertyp
Full-range
Nenndurchmesser
6"
Belastbarkeit (QMW)
30 Watts
Impedanz (Z)
8 ohms
Empfindlichkeit
89.6 dB 2.83V/1m
Schwingspulendurchmesser
0.27"
Gleichstromwiderstand (Re)
6.2 ohms
Resonanzfrequenz (Fs)
42 Hz
Mechanische Güte (Qms)
2.42
Elektrische Güte (Qes)
0.38
Gesamtgüte (Qts)
0.33
Bewegliche Masse (Mms)
5.2g
Nachgiebigkeit der Aufhängung (Cms)
2.71 mm/N
Membranfläche (Sd)
88.2 cm²
Kraftfaktor (BL)
4.74 Tm
Äquivalentvolumen (Vas)
1.05 ft.³
Maximale Auslenkung (Xmax)
7 mm
Außendurchmesser
6.46"
Gesamttiefe
3.12
Ausschnittdurchmesser
5.83"
# Befestigungsbohrungen
6
