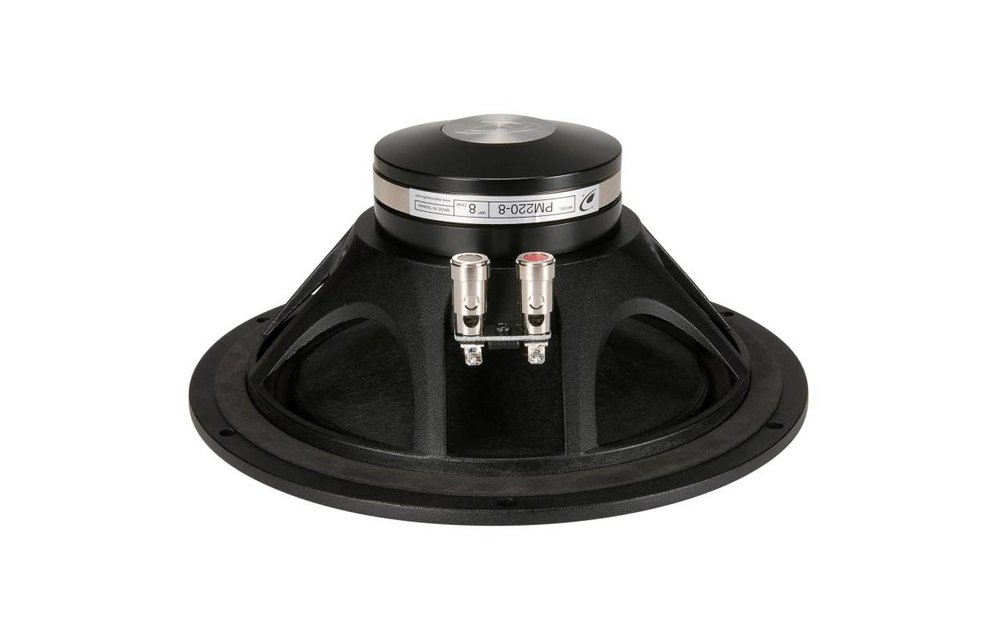

Dayton Audio PM220-8 8" Wideband Midbass Neo Driver

€ 115,66€ 139,95 1 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio designed the PM220-8 8" midbass driver for wide-bandwidth midrange and midbass applications in multi-way speakers.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €132,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio designed the PM220-8 8" midbass driver for wide-bandwidth midrange and midbass applications in multi-way speakers.



Highlights

  • Kevlar-reinforced paper cone for excellent detail
  • Klippel-optimized, high-performance design
  • Wide 43 to 10,000 Hz bandwidth meets high 95 dB sensitivity
  • Perfect complement for ribbon and planar tweeters
  • Powerful neodymium ring motor



Product details

Dayton Audio PM220-8 8" Wideband Midbass Neo Driver



The Dayton Audio PM220-8 8" midbass driver is based on the same platform as the acclaimed Point Source full-range drivers, but designed for esoteric high-performance applications requiring an extremely wide-bandwidth midrange or midbass driver. The PM220-8 model provides the ultimate in high-efficiency performance in a variety of system designs, including vented, transmission line, folded horn, or open baffle applications.



The PM Series mid-bass drivers feature ultra-linear Klippel-optimized neodymium motors with copper cap and shorting ring for low distortion, and lightweight, low-loss Kevlar-reinforced paper cones for exceptional detail and high efficiency. The wide bandwidth and extended upper range of these drivers makes them the perfect complement to ribbon and planar-magnetic tweeters.

Eigenschaften

Artikelnummer:
PM220-8
Woofer Series
PM Series
Woofer Type
Full-range/Midwoofer
Power Handling (RMS)
40 watts
Power Handling (max)
80 watts
Impedance
8 ohms
Sensitivity
95.4 dB @ 2.83V/1m
Frequency Response
43 - 10,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
6.5 ohms
Voice Coil Inductance (Le)
0.8 mH @ 1 kHz
Resonant Frequency (Fs)
49.1 Hz
Mechanical Q (Qms)
5.08
Electromagnetic Q (Qes)
0.41
Total Q (Qts)
0.38
Diaphragm Mass Inc. Airload (Mms)
10.7g
Mechanical Compliance of Suspension (Cms)
0.98 mm/N
Surface Area of Cone (Sd)
205.3 cm²
Volume of Displacement (Vd)
1.026 cm³
BL Product (BL)
7.21 Tm
Compliance Equivalent Volume (Vas)
63 liters
Maximum Linear Excursion (Xmax)
4.6 mm
Cone / Diaphragm Material
Paper Cone
Surround Material
Cloth
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Neodymium
Overall Outside Diameter
221.5 mm
Overall Depth
94 mm
Baffle Cutout Diameter
181 mm
# Mounting Holes
6
