Dayton Audio ES140TiA-8 5-1/2" Esoteric Series Woofer 8 Ohm

Lieferzeit: 1-3 Werktage

  • Artikelnummer: ES140TiA
  • Vorrat: 1 Auf Lager

The Dayton Audio ES140TiA-8 is a high-tech 5-1/2" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high power han

€ 146,95 Inkl. MwSt.

  • Kaufen Sie 4 für je €139,60 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

Dayton Audio ES140TiA-8 5-1/2" Esoteric Series Woofer 8 Ohm

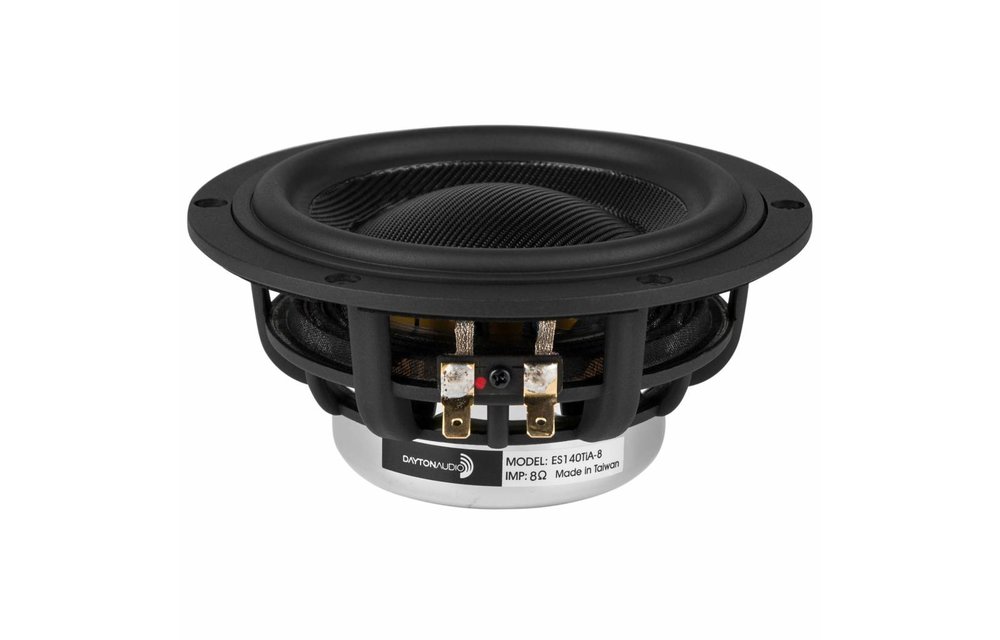

The Dayton Audio ES140TiA-8 is a high-tech 5-1/2" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high power handling and excellent transient response.



Highlights

  • Now with improved frequency response for easier crossover integration
  • Dual copper shorting rings in the motor for reduced energy storage
  • 3" edgewound voice coil on titanium former provides exceptional transient response

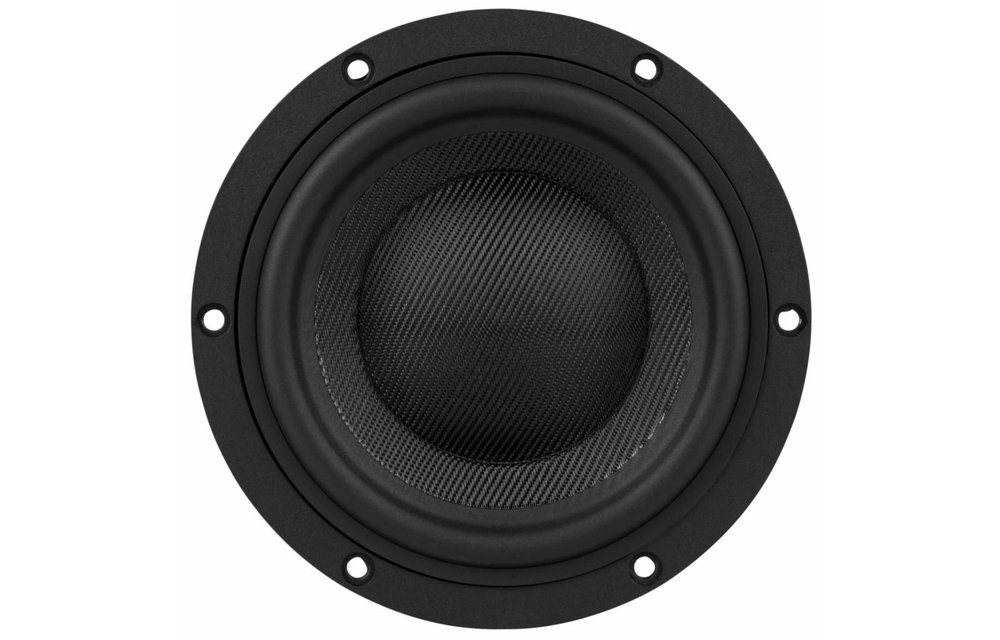

  • Woven glass-fiber cone provides excellent stiffness for minimal cone flex
  • High-power, ultra-low-distortion design



Product details

Dayton Audio ES140TiA-8 5-1/2" Esoteric Series Woofer 8 Ohm



Dayton Audio's Esoteric Series is the ultimate expression of Dayton Audio’s transducer engineering knowledge and finesse. Featuring high-end materials and advanced engineering throughout, the Esoteric Series collection of drivers elevates the state of the art in driver design. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.

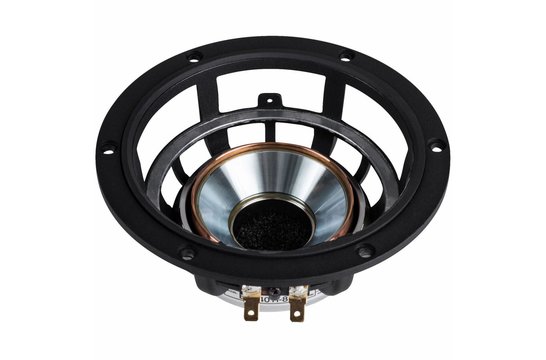

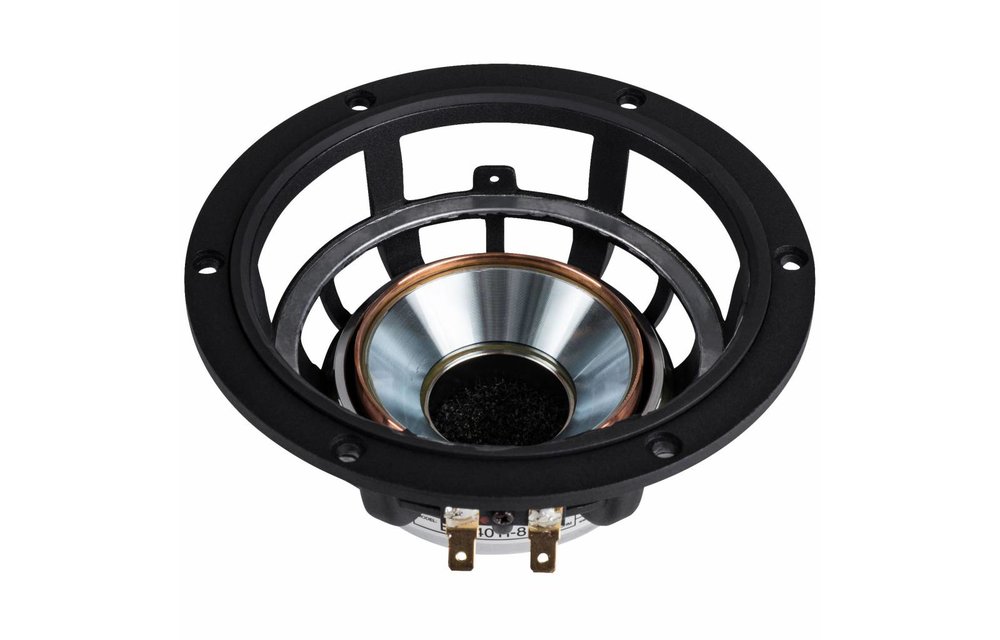

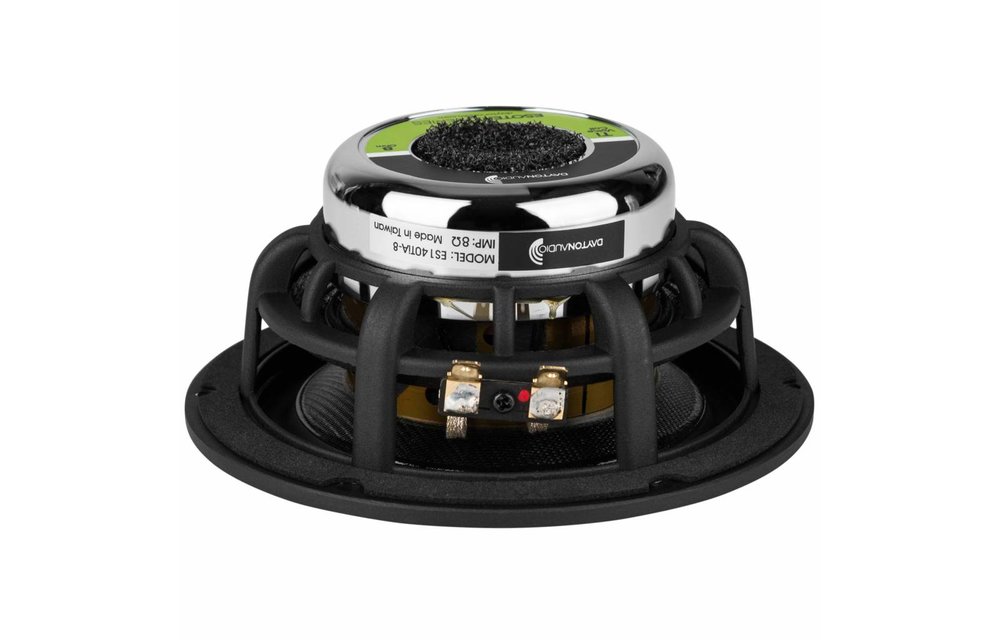

Unprecedented performance for a small woofer is packed into 5-1/2" ES140TiA-8, thanks to an FEA-optimized motor assembly using a large neodymium ring magnet and heavy dual copper shorting rings. Dayton Audio's Esoteric Series' woofer motor geometry is designed to provide a powerful, stable field with excellent saturation and symmetry, expanding the usable range of excursion.

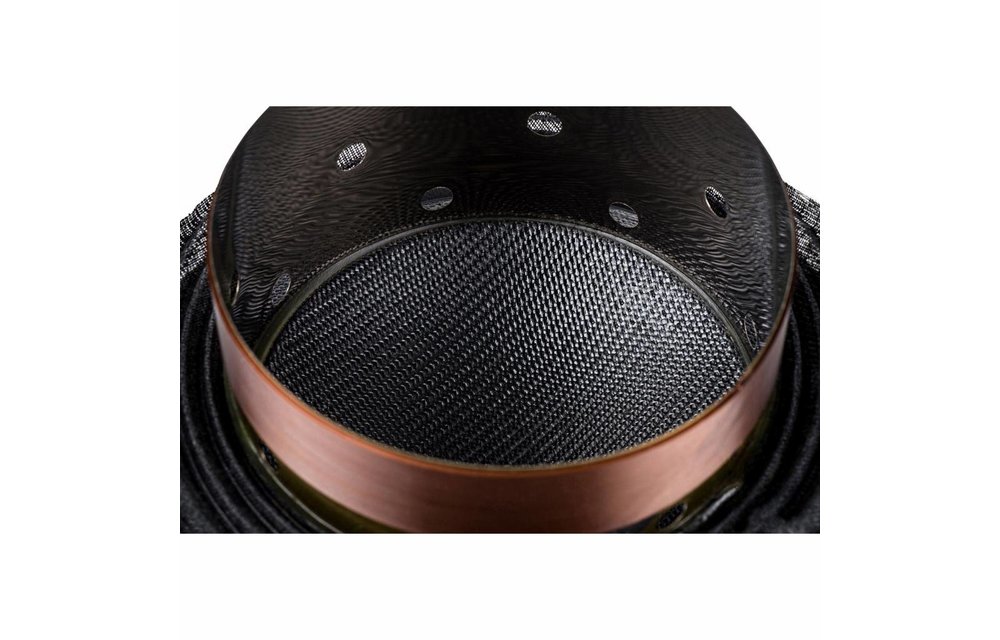

The huge 3" diameter voice coil is edgewound using rectangular copper-coated aluminum wire (CCAW) for maximal winding density within the coil profile, and the ventilated titanium voice coil former transfers energy to the cone with incredible speed while contributing added stiffness to the cone itself. A woven glass-fiber cone couples acoustic energy to the air with excellent stiffness and self-damping, while its shallow profile minimizes cavity resonance. The Klippel-optimized suspension is designed to allow high excursion of the cone without distortion, and the structure of the driver is supported by a fully ventilated cast aluminum frame for supreme mechanical stability without internal compression.



All of these elements combine to create a driver that breaks new ground with superb transient response and ultra-low distortion. By breaking free from established design conventions and rethinking how each part of the driver should behave, the ES140TiA-8 consistently delivers a musically accomplished performance, time after time. It’s an excellent choice as a woofer in a 2-way high-performance loudspeaker system, and the 8-ohm impedance makes it a natural choice for center channel MTM use as well.

Eigenschaften

Spezifikationen für: ES140TiA-8 5-1/2" Esoteric Series Woofer 8 Ohm

  • Woofer Series Spezielle Woofer- Produktionsreihe des Herstellers. Esoteric Series
  • Woofer Type Art des Drivers, wie zum Beispiel, Subwoofer, Midwoofer, Full-range, Coaxial-Woofer Midwoofer
  • Nominal Diameter Ungefährer Durchmesser des Drivers, gemessen in Inch. 5.50"
  • Power Handling (RMS) Durchschnittliche elektrische Bestlastbarkeit eines Lautsprechers in Watt, ohne den Driver zu beschädigen. RMS = Root Mean Square steht für Root Mean Square. 100 watts
  • Power Handling (max) Die maximale kurzzeitige elektrische Belastbarkeit eines Lautsprechers in Watt, bevor es zu Schäden kommt. 200 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 84.2 dB @ 2.83V/1m
  • Frequency Response 45 - 4,100 Hz
  • Voice Coil Diameter 75 mm
  • Magnet Weight
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 1.03 mH @ 1 kHz
  • Resonant Frequency (Fs) 41.7 Hz
  • Mechanical Q (Qms) 5.84
  • Electromagnetic Q (Qes) 0.50
  • Total Q (Qts) 0.46
  • Diaphragm Mass Inc. Airload (Mms) 20.9g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.70 mm/N
  • Surface Area of Cone (Sd) 98.5 cm²
  • Volume of Displacement (Vd) 49.3 cm³
  • BL Product (BL) 8.5 Tm
  • Compliance Equivalent Volume (Vas) 9.5 liters
  • Maximum Linear Excursion (Xmax) 5.0 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Nomex Cone
  • Surround Material Rubber
  • Voice Coil Wire Material CCA
  • Voice Coil Former Titanium
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 152 mm
  • Overall Depth 66.7 mm
  • Baffle Cutout Diameter 125.4 mm
  • Bolt Circle Diameter
  • # Mounting Holes 6
  • Mounting Hole Diameter
  • Sealed Volume 0.13 ft.³
  • Sealed F3 77.8 Hz
  • Vented Volume 0.41 ft.³
  • Vented F3 41 Hz
