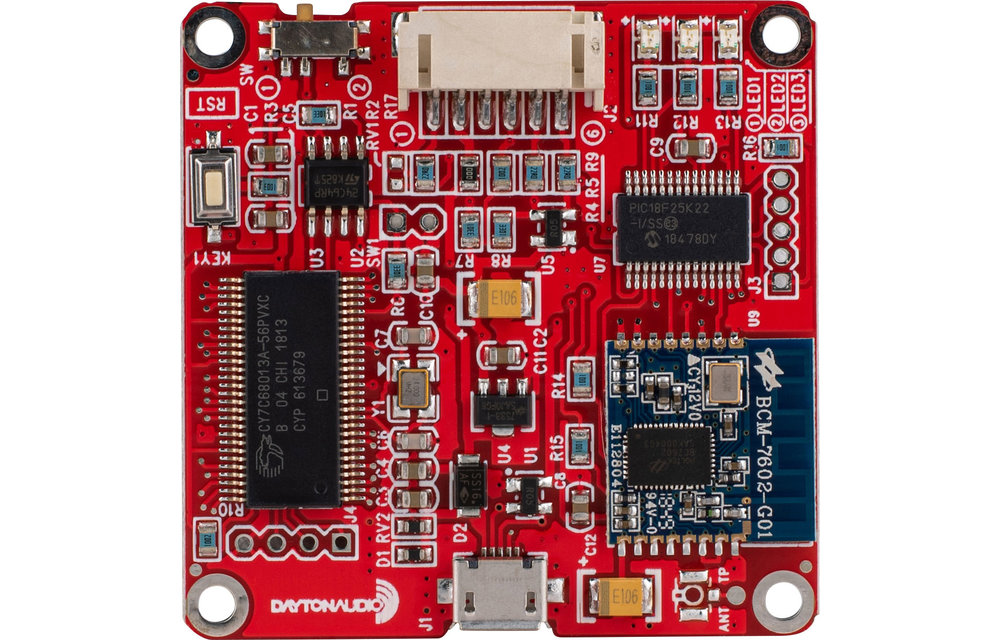

Dayton Audio DSPB-ICP1 In-Circuit Programmer USB
The Dayton Audio DSPB-ICP1 allows you to unlock the full potential of your DSPB amplifier or preamp boards by connecting them to the easy to use, Analog Devices SigmaStudio visual programming tool. This allows you to set precise EQ, crossovers, do time alignment, bass enhancement and so much more to truly fine tune your project.
Highlights
- Programs with readily available SigmaStudio computer software
- Connects to your computer using a standard micro USB cable (sold separately)
- 50 x 50 mm size fits into small enclosure projects for permanent installations or for easy connection to your DSPB amplifier or preamp boards
- Includes a 6-pin, 8" jumper cable that plugs directly into Dayton Audio DSPB amplifier and preamp boards
Product Details
Dayton Audio DSPB-ICP1 In-Circuit Programmer USB

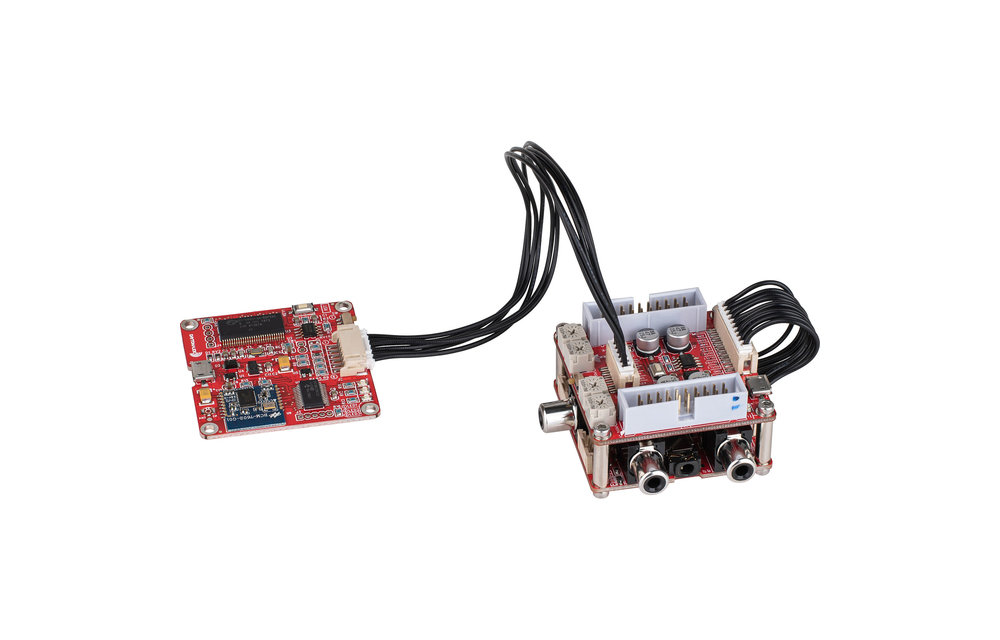

After you receive your Dayton Audio DSPB-ICP1, make a couple of quick connections, install SigmaStudio onto your Windows computer and you are ready to start customizing the sound of your Dayton Audio DSP amplifier or preamp! The included 6-pin jumper cable plugs directly into the programming board and the other end into the Dayton Audio DSP amplifier or preamp board. Get an even quicker start to SigmaStudio development by using one of our easy to use, preconfigured project files. Make advanced crossovers, filters, eq and more without any knowledge of inductors, capacitors or electronic design at all! Just drag and drop premade blocks, and enter parameters to suit your needs and get almost immediate results. There is no shortage of possibilities and projects that can be achieved with the DSPB product line when combined with the ICP1. Check out the user guide above for quick start guides, detailed instructions, and configuration possibilities.
Note: Make sure you have the switch set to USB mode (1) on the DSPB- ICP1 board when programming.
