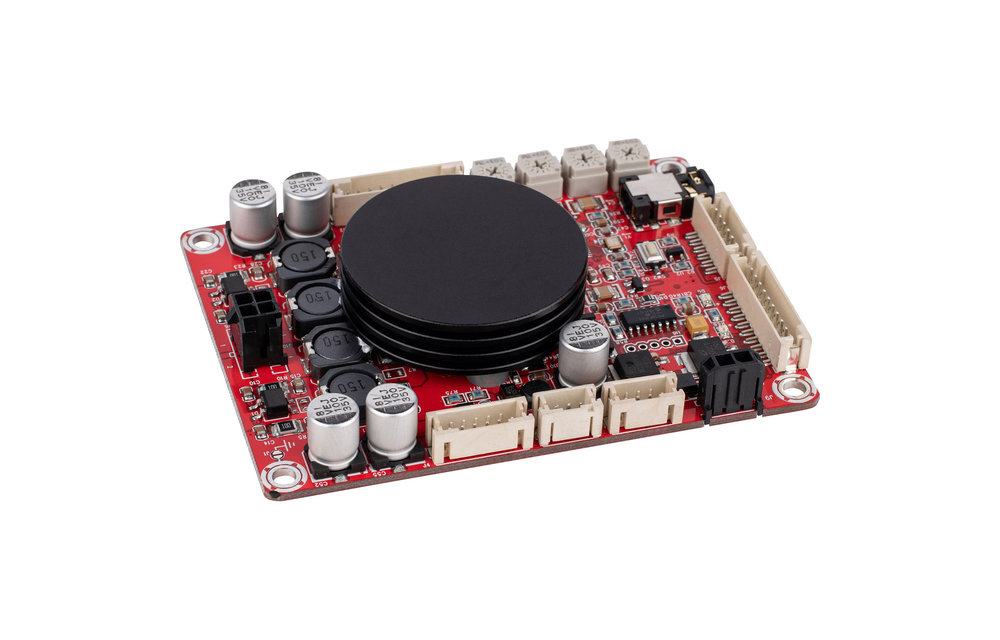

Dayton Audio DSPB-100 100W Class D Mono Audio Amplifier Board with DSP

Lieferzeit: 1-3 Werktage

  • Artikelnummer: DSPB-100
  • Vorrat: 2 Auf Lager

Dayton Audio DSPB-100 combines a 1 x 100W amp board with the ADAU1701 digital signal processor which enables you to customize sound using SigmaStudio software and Dayton Audio ICP1 Bluetooth programmer. Use the DSPB-100 as the heart of your DSP audio proj

€ 54,95 Inkl. MwSt.

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

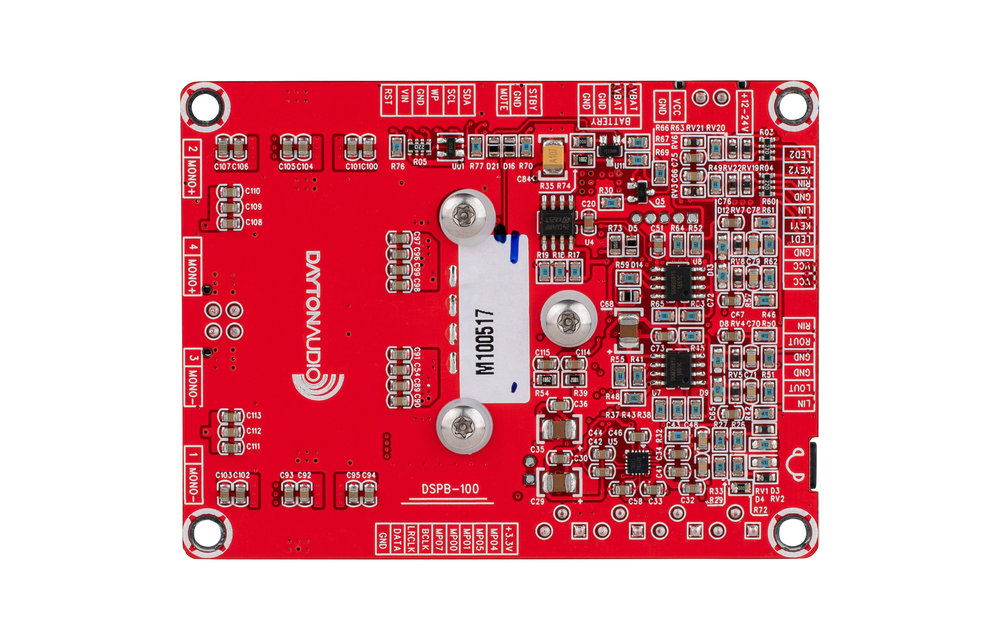

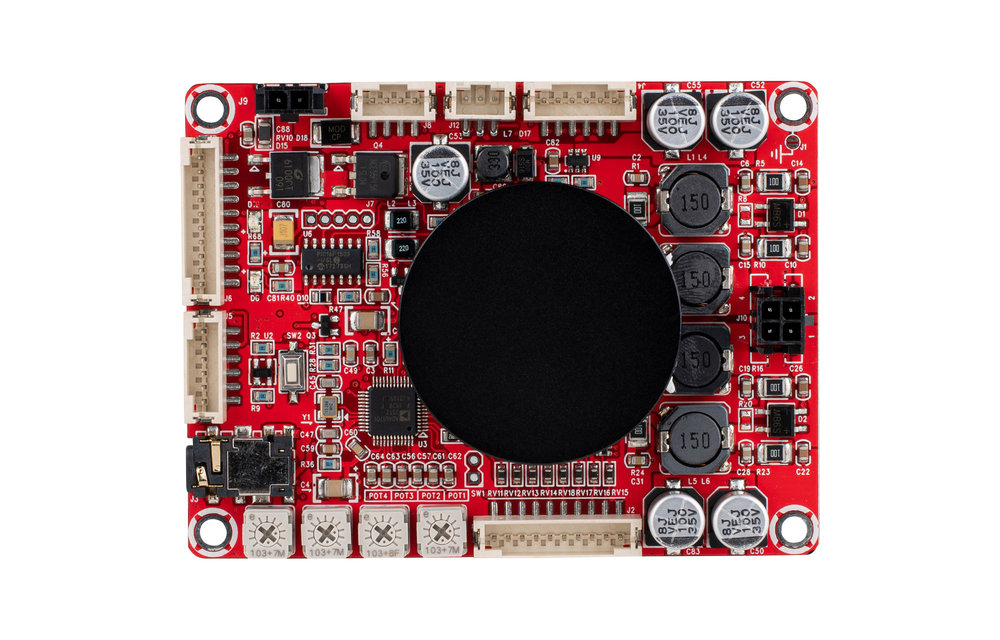

Dayton Audio DSPB-100 100W Class D Mono Audio Amplifier Board with DSP

Dayton Audio DSPB-100 combines a 1 x 100W amp board with the ADAU1701 digital signal processor which enables you to customize sound using SigmaStudio software and Dayton Audio ICP1 Bluetooth programmer. Use the DSPB-100 as the heart of your DSP audio project, or combine it with the KAB-250v3 to make a Bluetooth DSP 2.1 channel project.



Highlights

  • Efficient 100W of power from the TPA3116 amp chip
  • Wire harnesses make installation quick and simple with no soldering required -- includes power, Aux-in and speaker cables
  • Connects directly to KAB-230v3 and KAB-250v3 with optional wiring harness (sold separately) to achieve 2.1 channel output and Bluetooth capabilities
  • Separate ports for powering by battery or direct DC input from 12 to 24V power source
  • Program with SigmaStudio software and Dayton Audio ICP1 (sold separately)
  • 5-year Dayton Audio warranty



Product Details

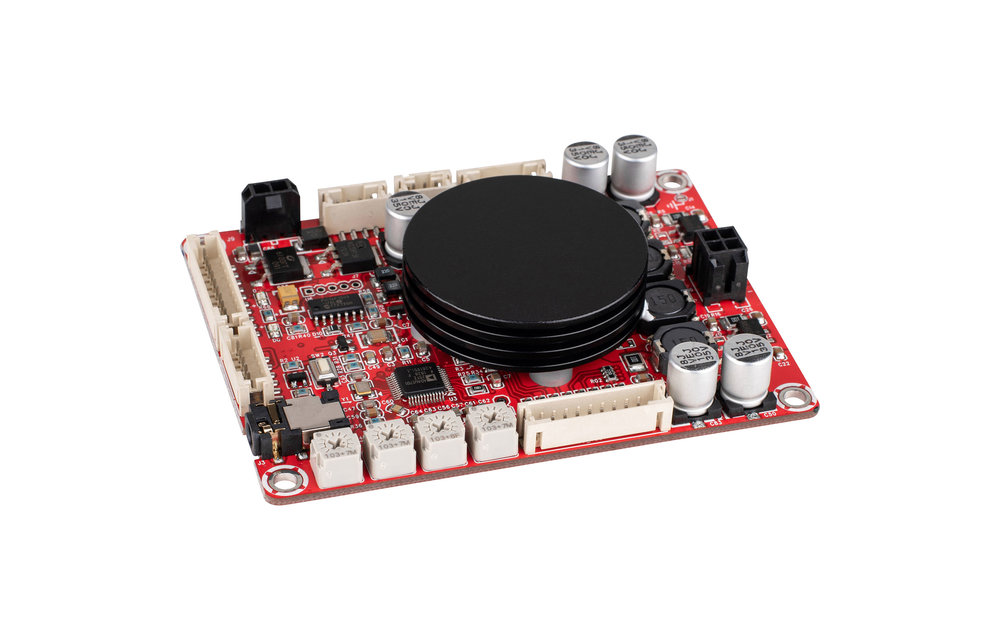

Dayton Audio DSPB-100 100W Class D Mono Audio Amplifier Board with DSP



High Quality Audio Performance: The Dayton Audio DSPB-100 DSP Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient TPA3116 Class D amplifier chip. The TPA3116 operates at 88% efficiency, thus eliminating the need for a large heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build. This board is preset to work as a subwoofer amp board. If you want to use it as a for full range amp board you must preprogram it with SigmaStudio.



Integrated DSP Chip: Unlike other amplifier boards, the Dayton Audio DSPB-100 includes a built-in ADAU1701 DSP chip. Create nearly limitless possibilities of EQ, crossover, bass enhancement, time alignment and more thanks to the ADAU1701 DSP chip. Make advanced crossovers with ease without circuit knowledge, capacitors, inductors, or preamp boards, and get almost immediate feedback on how your project sounds. SigmaStudio software and Dayton Audio DSPB-ICP1 programming board (sold separately) combine together to let you set audio parameters to produce hi-fi quality sound. Download SigmaStudio into your desktop or laptop computer and plug the small ICP1 board into the USB port using a micro USB cable (sold separately). To quickly adjust the sound there are four potentiometers on the DSPB-100 amp board.



Easy Installation: Included with the DSPB-100 are three wire harnesses: one for DC power, one for Line-input, and the other for connecting to stereo speakers. For many users, these cables are all that is needed to complete a project. Since they have additional on board connectors, wiring harnesses (sold separately) are available to speed-up installation and create confident connections without soldering.



Endless Applications: Use this full function, adjustable amplifier board with built-in DSP chip in endless audio applications that seem impossible to produce the right sound quality. So if you’re a hobbyist or manufacturer enjoy presetting this full functioning 1 x 100W DSP amplifier board to peak performance in your finished product. The DSPB-100 is also CE and FCC ready for certification purposes.



Portable Power Paths: For portable applications, there are three battery holder/charging boards which permit the connection of li-Ion rechargeable batteries to power the board. First is the Dayton Audio KAB-BE 3-cell 18650 battery holder/charger board that is the same size as the DSPB-100 and KAB-250v3 which makes it easy to stack the boards with standoffs. This battery board must use a 15 to 24 VDC power supply.

If you desire more wattage output, use the 5-cell 21 VDC Dayton Audio LBB-5S or LBB-5 board. They work with 5 to 24 VDC power supplies. The LBB-5S uses 18650 Li-Ion batteries, and the LBB-5 uses 26650 Li-Ion batteries which delivers more play time. These portable power sources are highly recommended since all three provide under/over voltage protection.



Please note: To achieve power output briefly plug in the recommended power supply into the battery boards after the batteries are installed or when the batteries are removed and reinstalled.



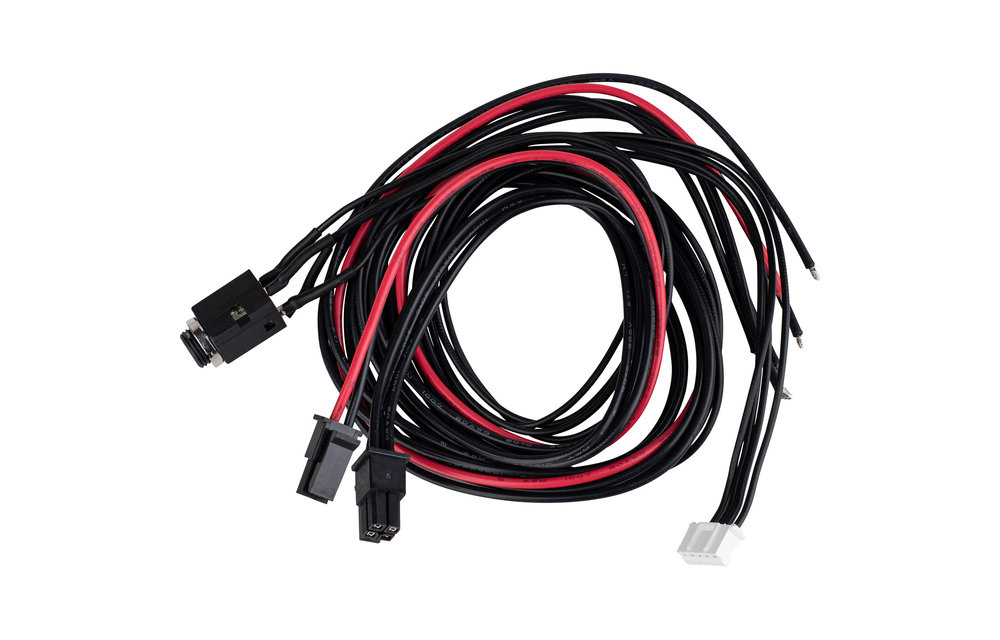

Package Includes: One Dayton Audio DSPB-100 DSP Amplifier Board • One 2-conductor power cable 20" • One 4-conductor speaker cable 20" • One 3.5 mm line-input cable 20"



Specifiactions: Power output (w/ 24 VDC power supply): 1 x 100W @ 2 ohms • SNR: 88 dB 100W @ 2 ohm, THD+N=1%, 26 dB, A-weighting • 100W @ 2 ohm, THD+N = 1%, 200 Hz • THD+N: 0.05% 10W @ 2 ohm 200 HZ 26 dB • Frequency response: 20 to 20,000 Hz (±3 dB) • Impedance: 2-8 ohms • Recommended power supply: 12 to 24 VDC, 4A • Board mounting holes center to center spacing: 3.32" x 2.4" (84 x 61 mm) • Hole diameter: 0.14" (3.5 mm) • Dimensions: 3.6" L x 2.7" W x 0.9" H.
